Stumpex | Fecon


Models: SHX33SS

Download Spec Sheet:

Download
General Info
Condition: Showroom
Manufacturer: Fecon
Model: Stumpex
Engine
Performance
Operating Weight: 1368 lb
Hydraulics
Aux. Standard Flow: 20-42 GPM
Dimensions

Description

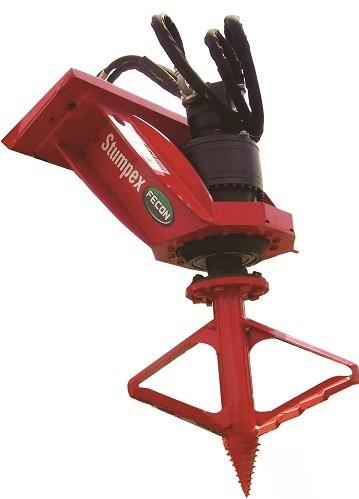

Stumpex Auger Stump Grinder Attachment by Fecon

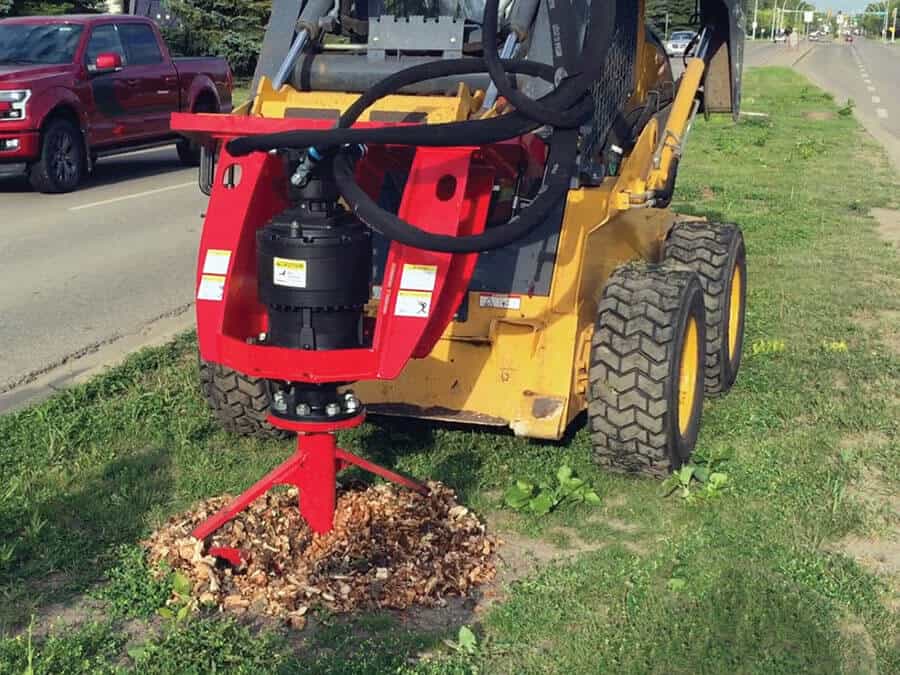

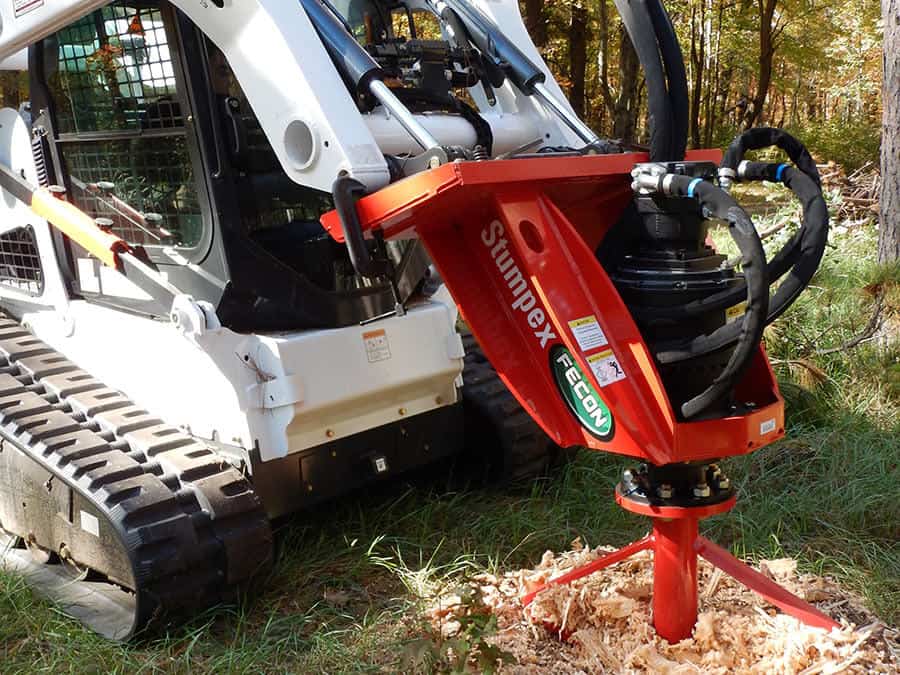

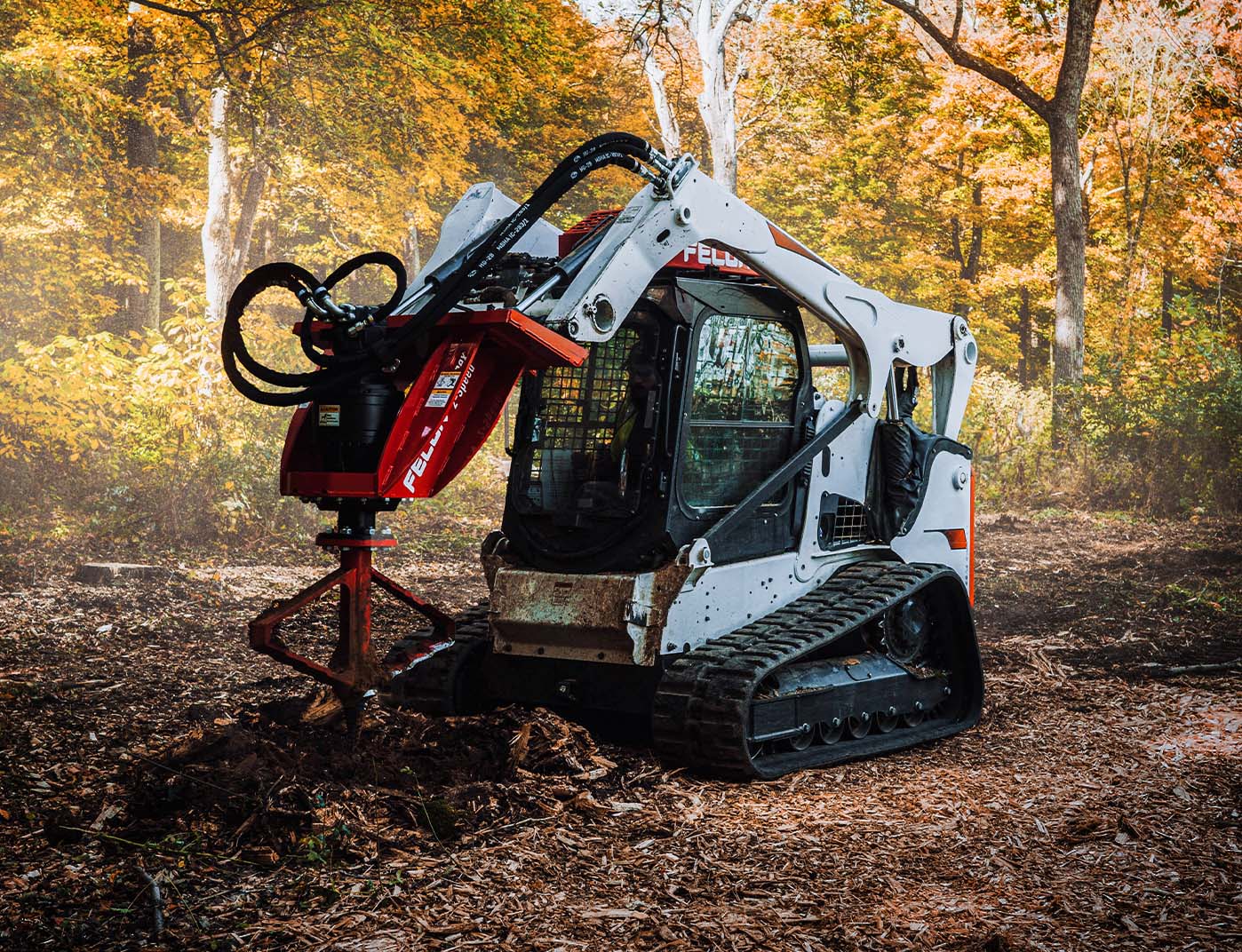

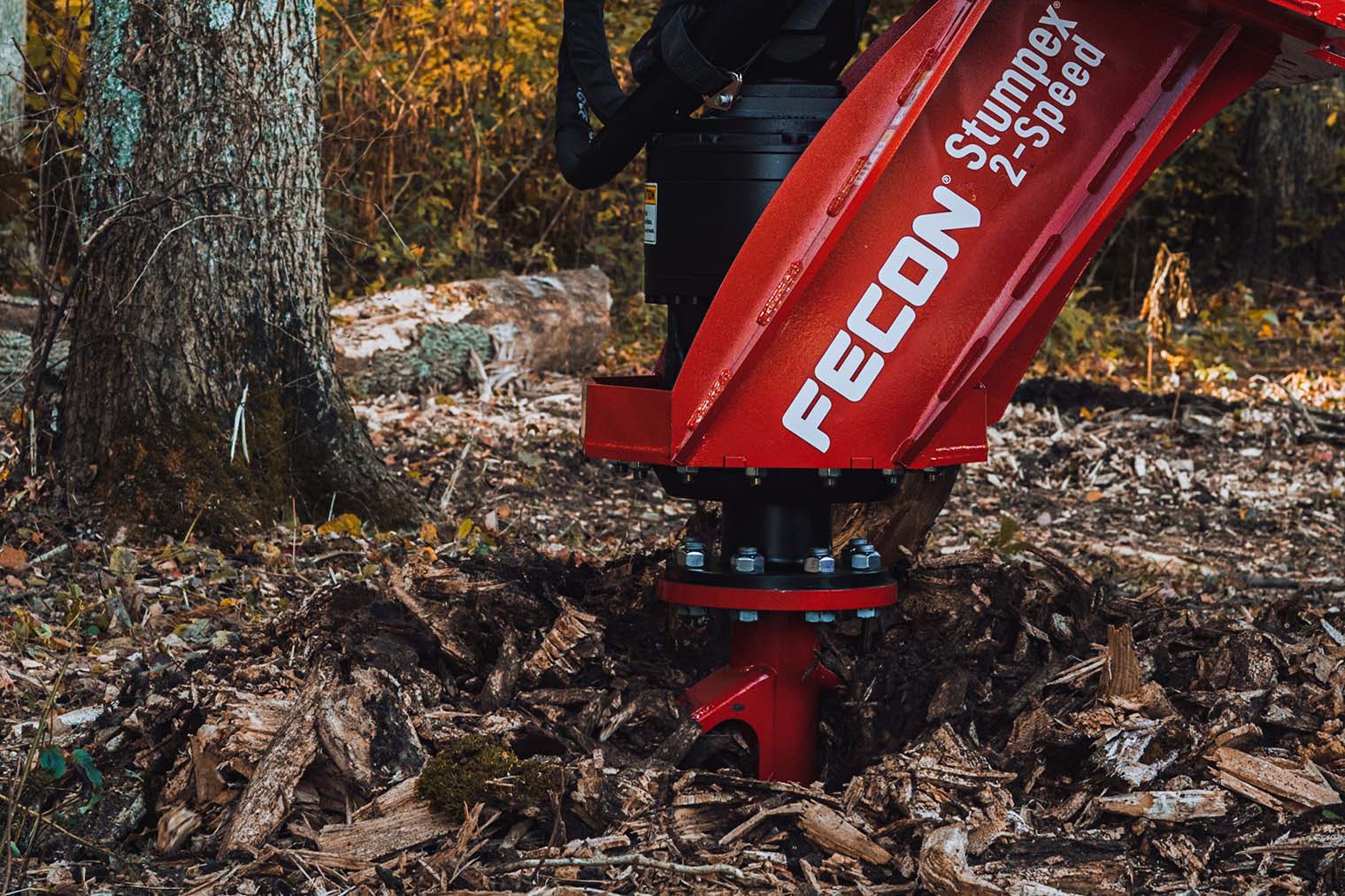

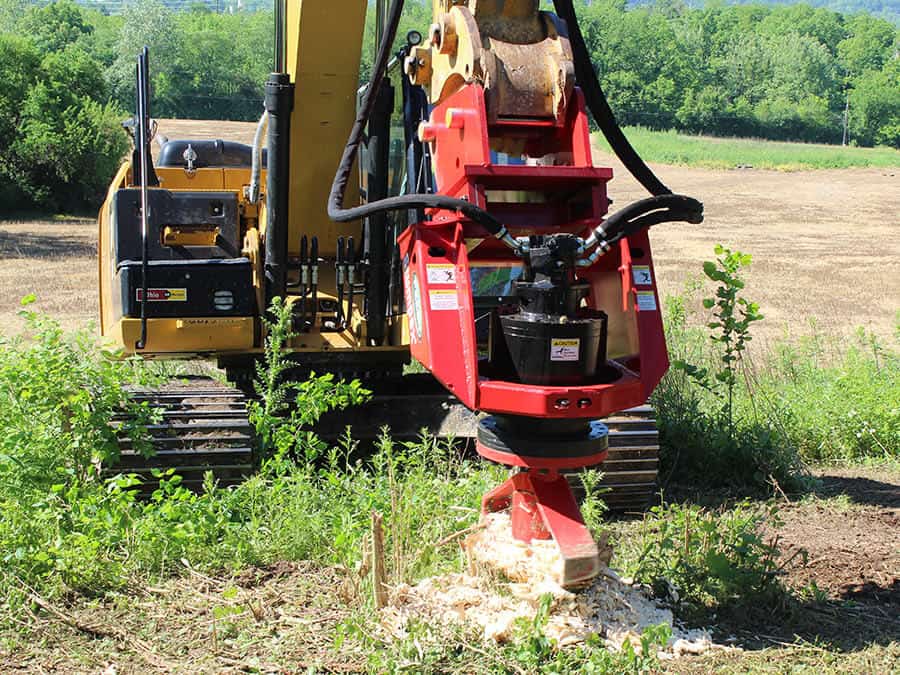

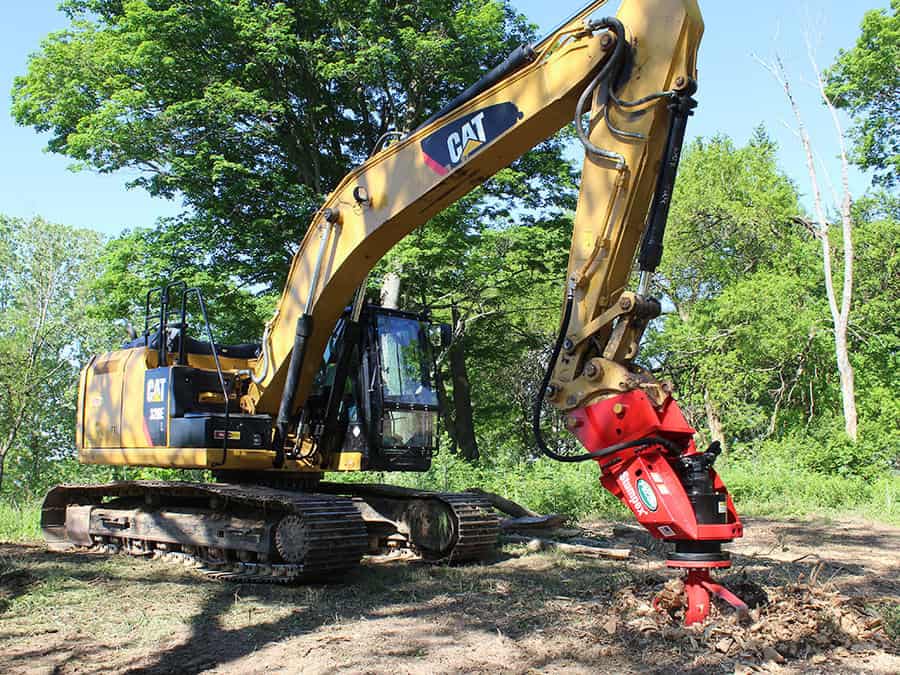

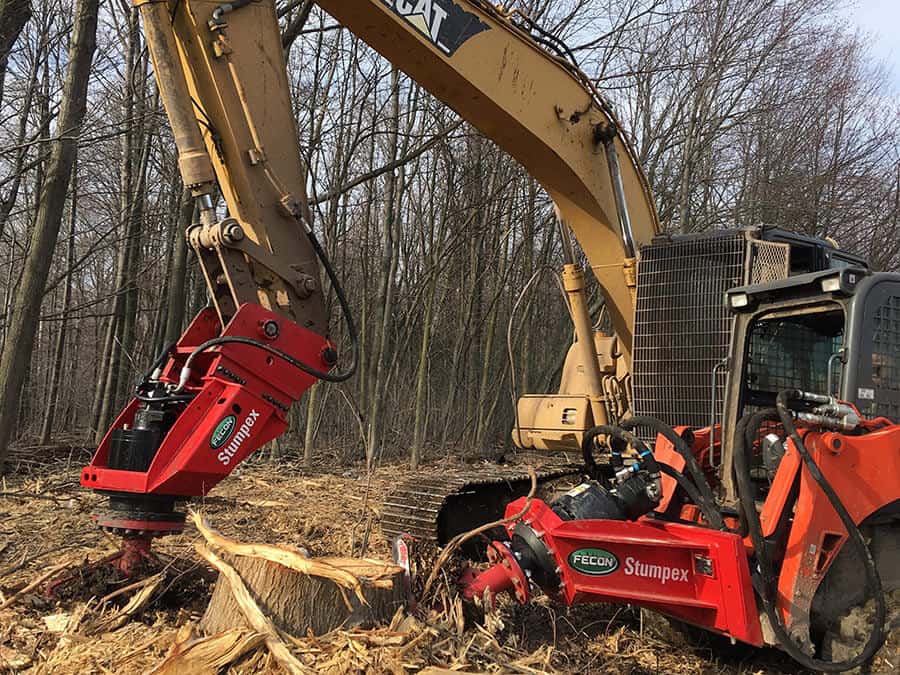

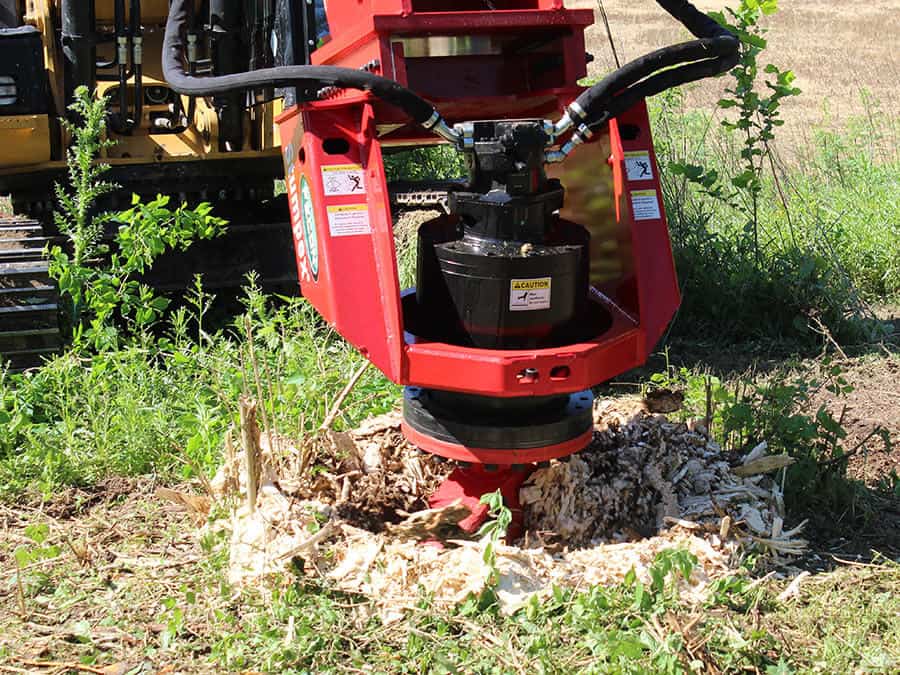

The Fecon Stumpex stump grinder mounts to excavators and skid steers, with as little as 20 gpm hydraulic output. The Stumpex low RPM and 33,600 ft. per lb. of torque enables it to draw itself down into any species of stump. The Stumpex can draw into stumps 8” – 28” in diameter and up to 20” deep in a single pass. Larger diameter stumps are processed by making additional passes. A threaded replaceable cone and staggered AR500 cutting blades grind out stump and root material with minimal discharge. Low maintenance costs, high production, and less clean-up make the Stumpex a great opportunity for stump grinding contractors in land clearing, tree care and municipal applications.

 Features

STUMPEX ATTACHMENT OVERVIEW

Be sure no one is within 15 feet of the working area to ensure safety. Always survey your working area for obstructions and call before you dig to avoid utilities.

Always properly maintain your Sumpex by inspection daily and making sure your blades are properly sharpened. Stumpex blades should maintain a 30 degree angle to work efficiently. Remember to always use your Fecon-provided sharpening gauge.

  • Fraction of work time compared to conventional stumpers
  • No carbide tools to replace
  • Low maintenance (greasing & sharpening only)
  • Low RPM auger bit (7-16 RPM) leads to easy clean-up and has no high speed flying debris for safer work zone

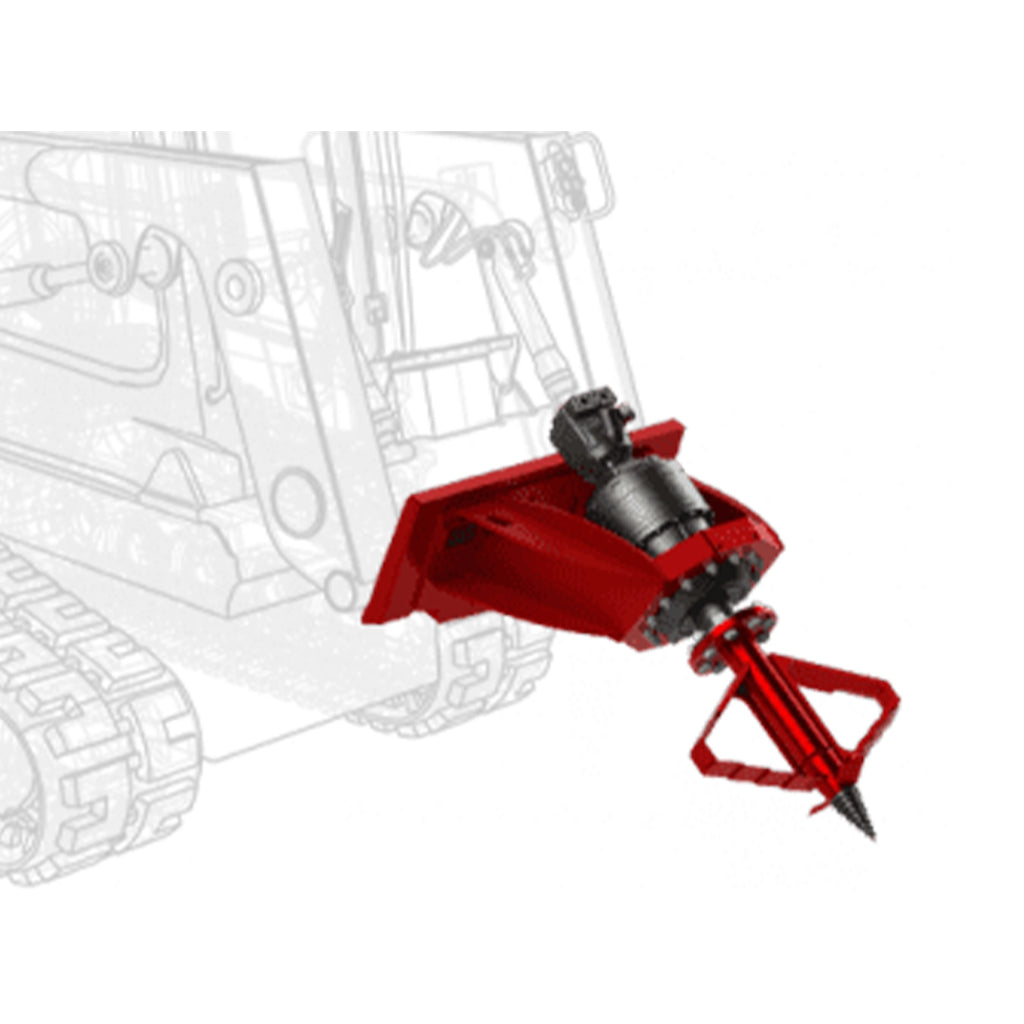

  • Mount on skid steers with 20-42 GPM / 2,500 to 4,000 psi

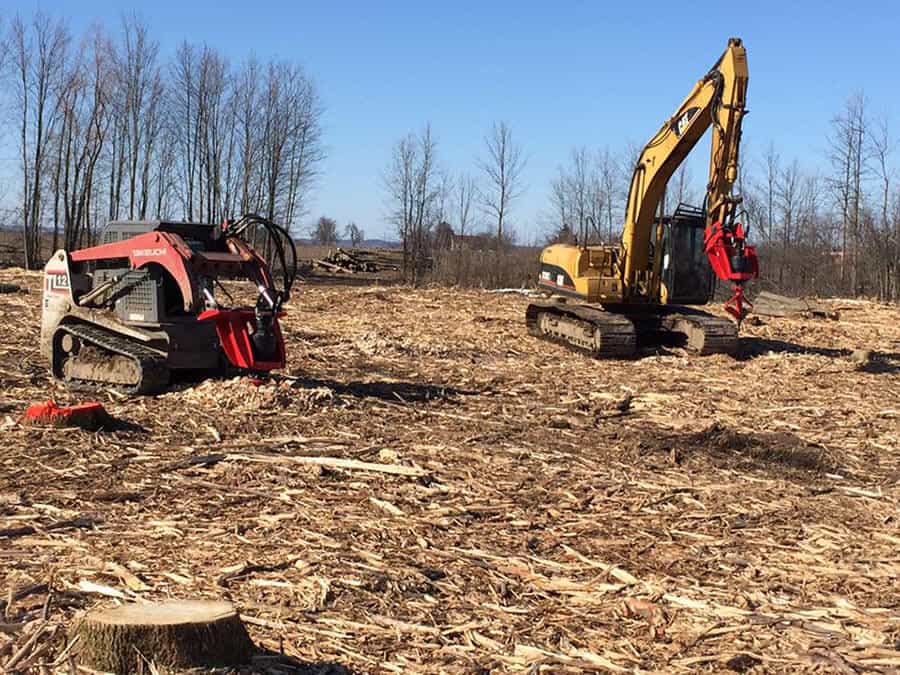

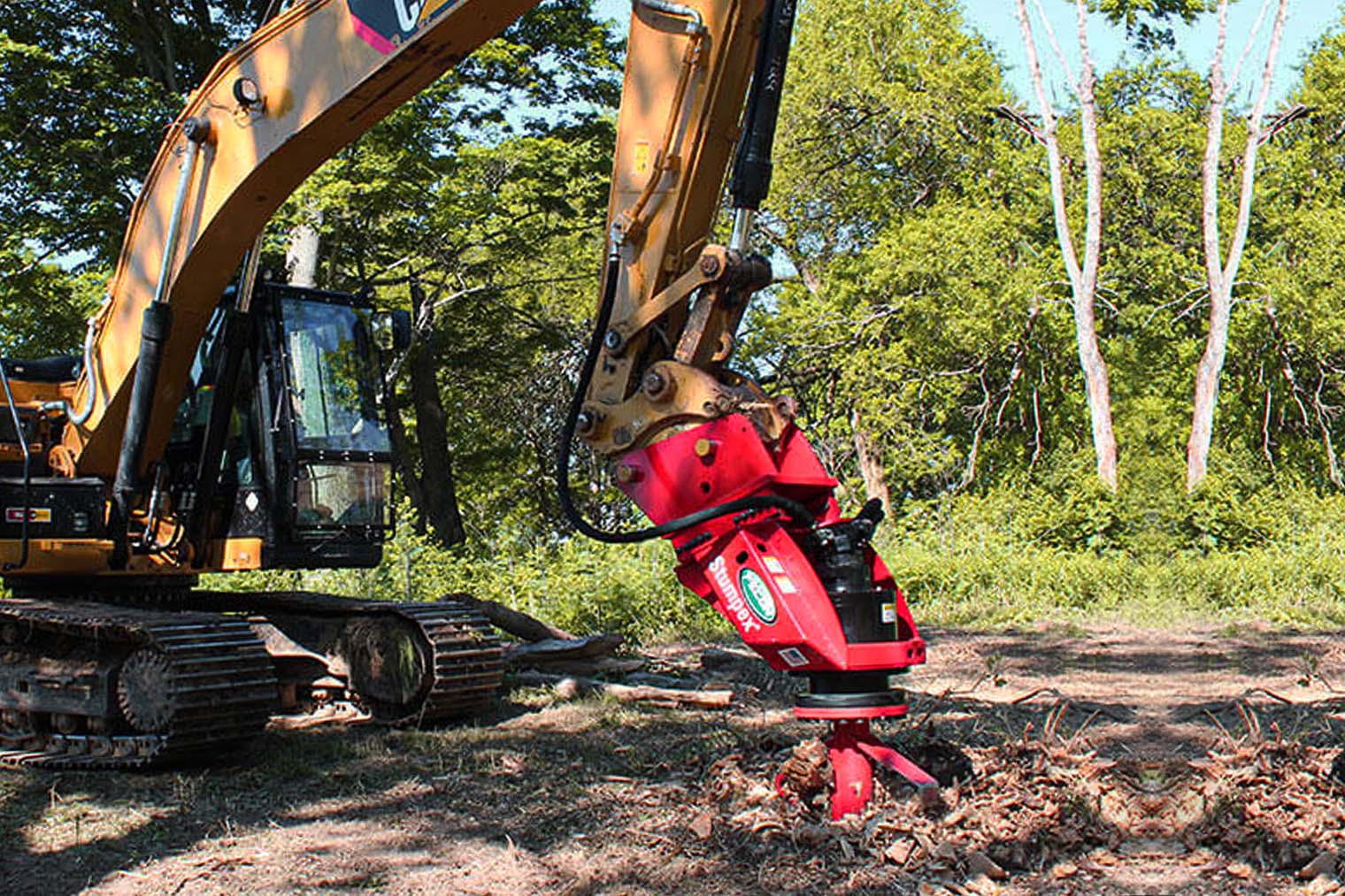

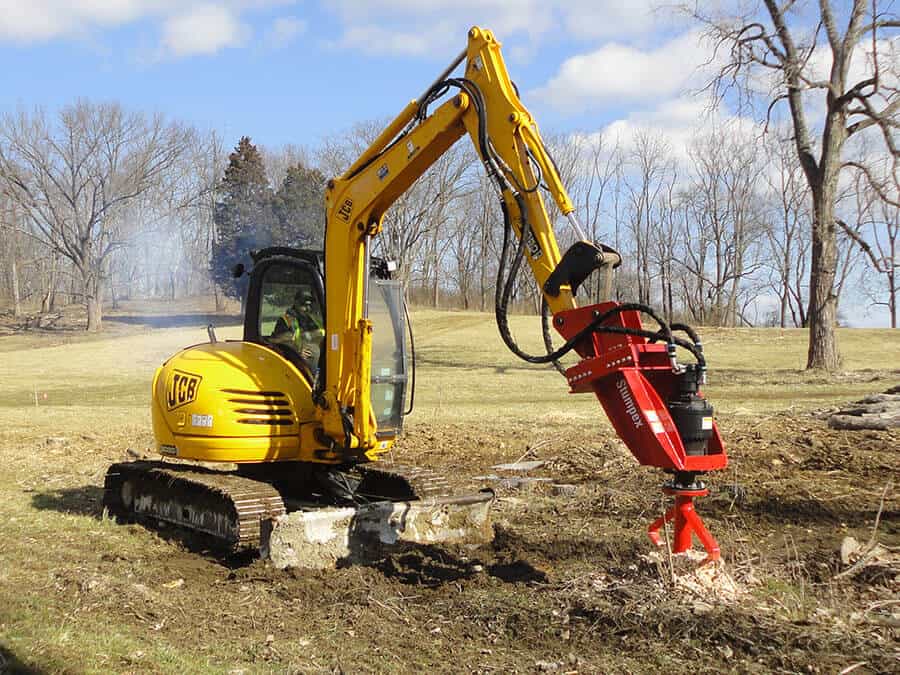

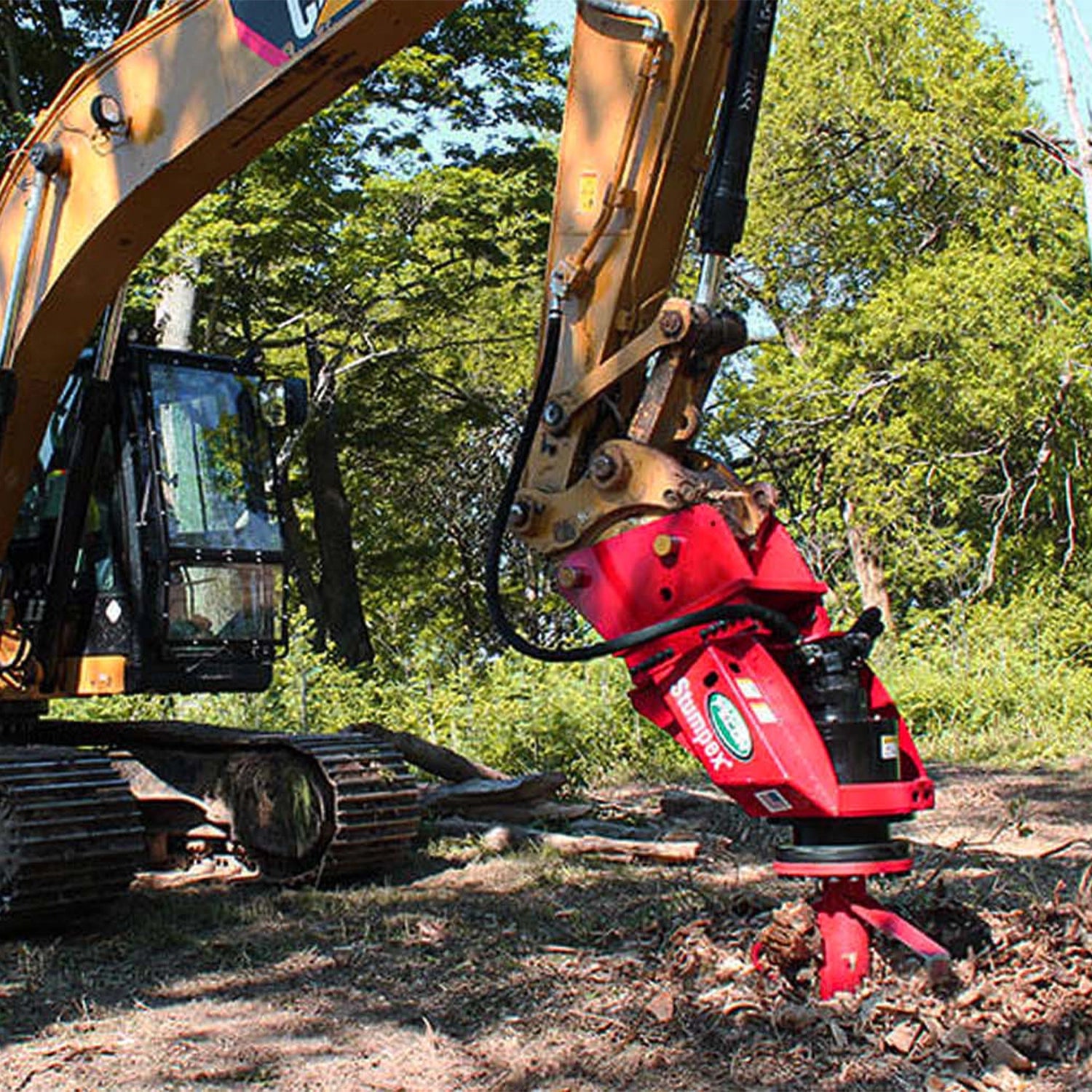

  • Mount on excavators with 12-20 ton rating and back hoes
 Specs

STUMPEX ATTACHMENT PRODUCT SPECIFICATIONS

STUMPEX

MODEL MOUNT BIT DIAMETER WEIGHT EXC SIZE (METRIC TON) FLOW REQUIRED
SHX33SS SS 32" / 813 mm 1368 lb / 621 kg -- 20 - 42 gpm
SHX33EXC EXC 32" / 813 mm 1368 lb / 621 kg 8 - 12 ton 20 - 42 gpm

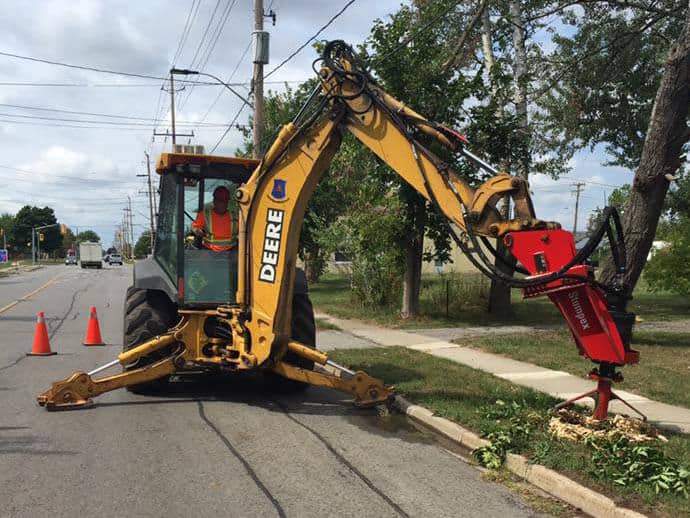

SHX33 BAckhoe Back Hoe 32" / 813 mm 1368 lb / 621 kg -- 20 - 42 gpm
SHX34EXC EXC 32" / 813 mm 2000 lb / 908 kg 12 - 20 ton 40 - 65 gpm
