QuattroPlowXT by SnowWolf
For: 15,000-30,000 lb. Machinery
4X THE PLOW Just Got Even Bigger
Description

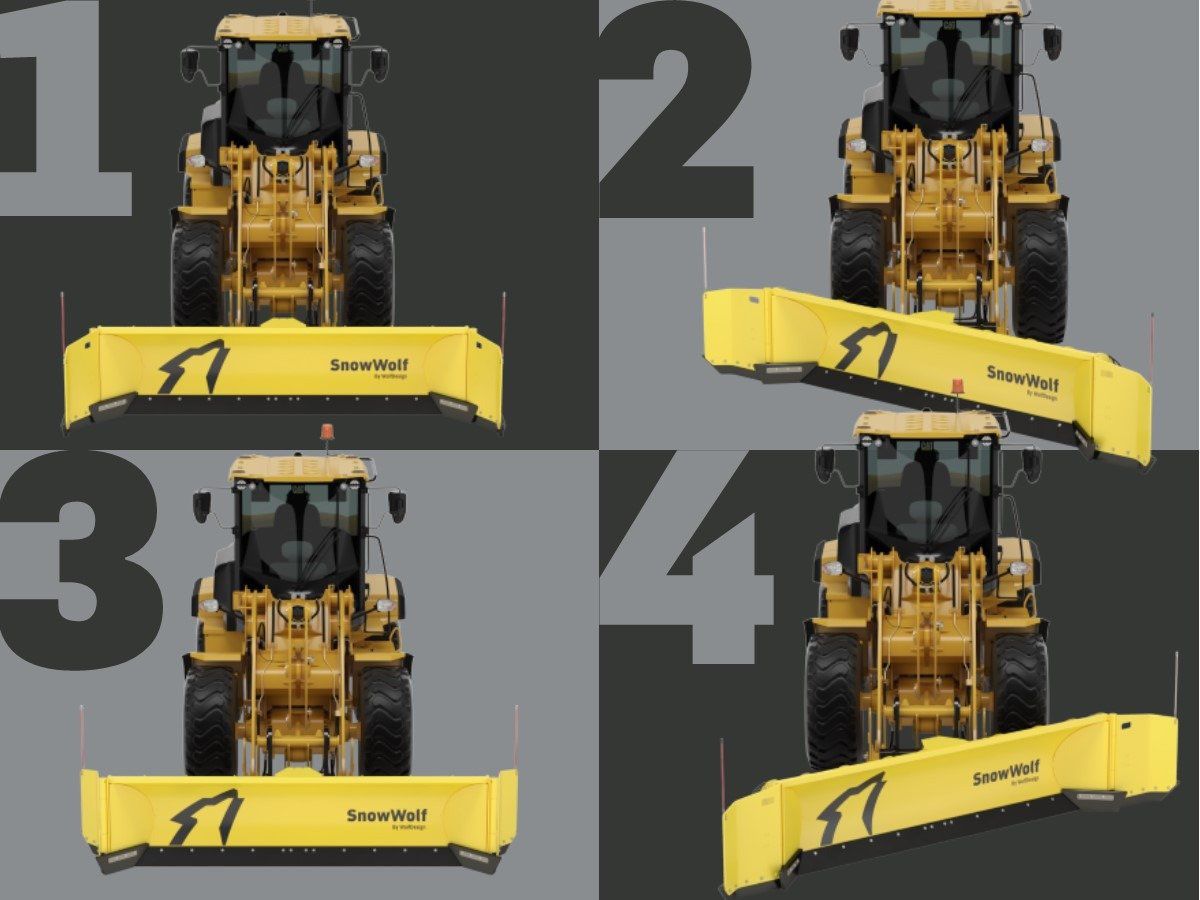

The QuattroPlowHD is a four-in-one plow that combines the best of our AlphaPlow™, FastTach® and WolfWings™. Easily shift from angle plowing to straight plowing to high-capacity pushing to backdragging in just seconds without ever leaving your machine or even pushing a button. A fifth function, wide-angle plowing, extends your plow by 28 inches on each end. All it takes is less than a minute to reposition the wing cylinders on each side of the plow. QuattroPlow wings operate automatically using only two hoses and couplers, just like an angle plow.
Specifications
| Model Number | QPHD-146 | QPHD-170 | ||||
| Blade Width (A) | 145" (12'-2") | 170" (14'-2") | ||||
| Moldboard Width (B) | 120" (10.0') | 144" (12.0') | ||||
| Overall Width at Full Angle (C) | 127" | 147" | ||||
| Clearing Width at Full Angle (D) | 100" | 120" | ||||
| Clearing Width at Wide Angle (E) | 176" | 200" | ||||
| Blade Height | 38" | 38" | ||||
| Weight (lbs.) (actual–not ship weight) | 2855 | 3152 | ||||
| Moldboard Gauge | 10 Ga. | 10 Ga. | ||||
| Trip Springs | 8 Ext. | 8 Ext. | ||||
| Wear Shoes | N/A | N/A | ||||
| Moldboard Cutting Edge | 3/4" x 8" top bunch | |||||
| Angle Rams | 2” x 13” Double Acting Nitro Steel Cylinder | |||||
| Vertical Ribs | 8 | 10 | ||||
| Moldboard Radius | 19" | 19" | ||||
| Full Down Pressure | Yes | Yes | ||||
| Wheel Loader Compatible Mounts | CAT IT Mount, CAT Fusion Mount, JRB 416 Mount | |||||
| Crossover Relief Valve | Standard | |||||
| Side Plate Thickness | 5/8" Grade 50 | |||||
| Side Plate Wear Shoes | 1" x 8" AR-400 Floating | |||||
| Side Plate Hinge Pin | 1-7/8" x 29-3/4" | |||||
| Side Plate Cylinder | 2-1/2" x 8" | |||||
Features
| Features | Benefits |
|---|---|
| Smart Valve | This SnowWolf exclusive hydraulic valve controls the plows' wings without removing your hands from the controls. Angle right and hold for snowpusher position. Angle left and hold for wing plow or backdrag position. The new type of hydraulic valve makes it possible to control the plow’s wings without ever removing your hands from the steering controls. |
| 165-Degree Wing Rotation | Move the wings all the way forward for pushing, to the sides for plowing or all the way back for backdragging. Also allows you to carry more snow backward for a greater distance and with fewer windrows than with a straight plow alone. |
| 23-Inch Extension on Each End in Wide-Angle Position | Especially efficient for operators who seldom or never need backdragging containment. |
| 35-Degree-Angle Tips on Wings | Provides greater carrying capacity while minimizing windrows regardless of the direction the machine is moving. Also keeps the wings clear of the machine’s front tires. |
| Backdragging Down Pressure | Delivers exemplary scraping ability and containment. |
