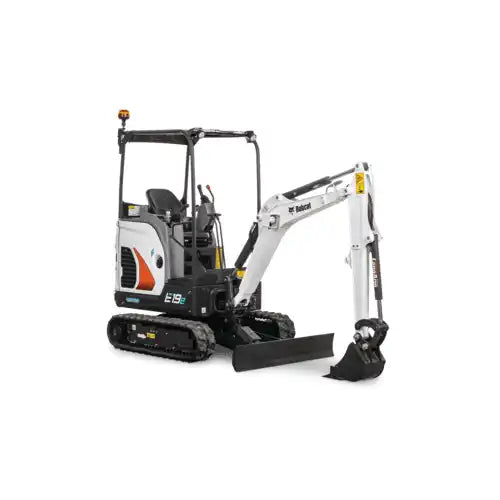

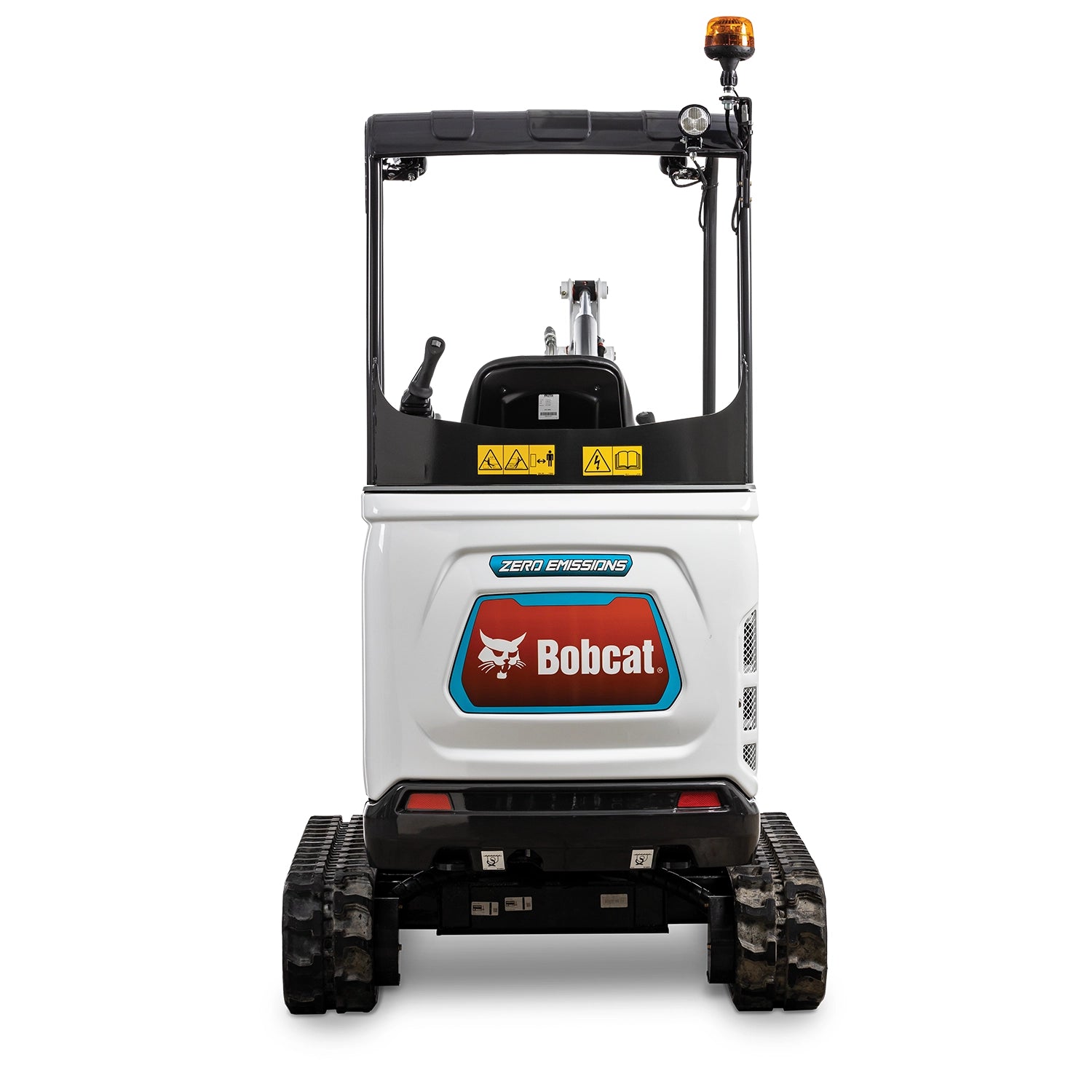

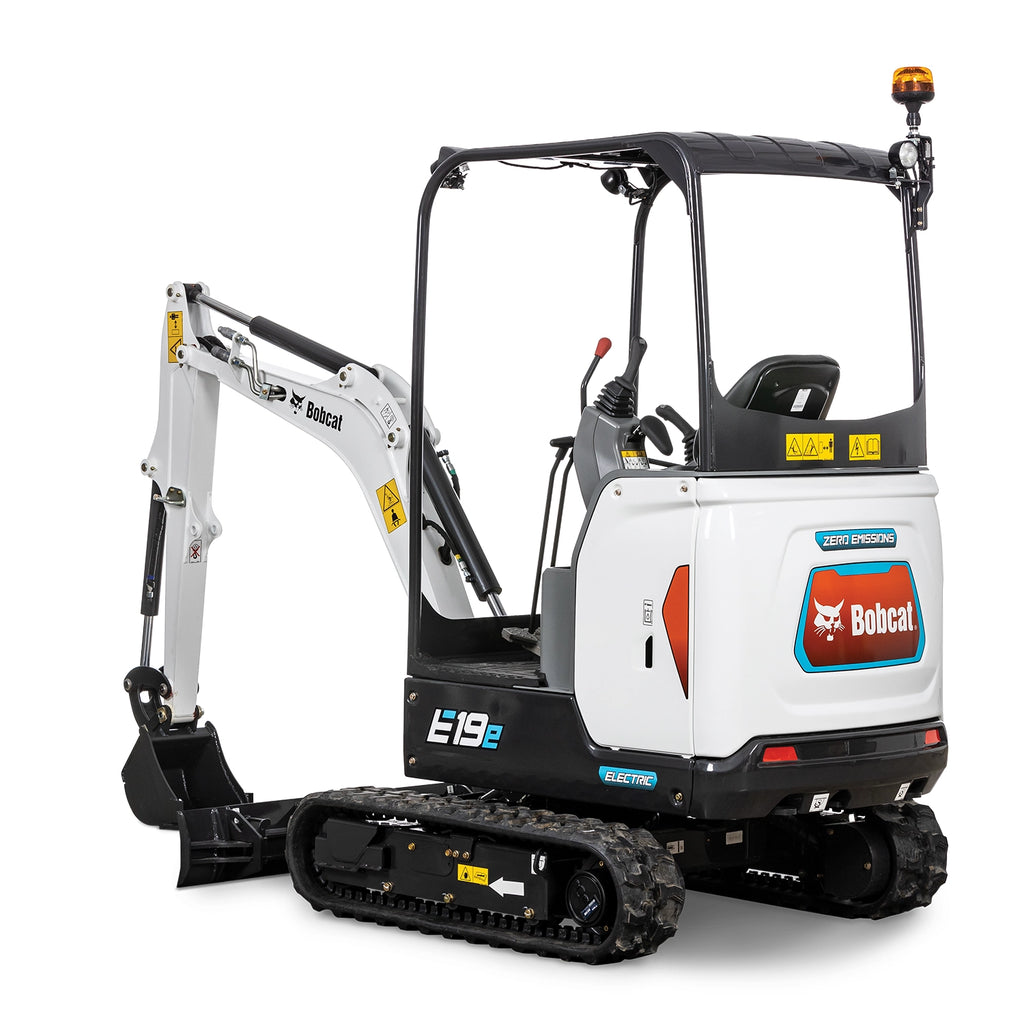

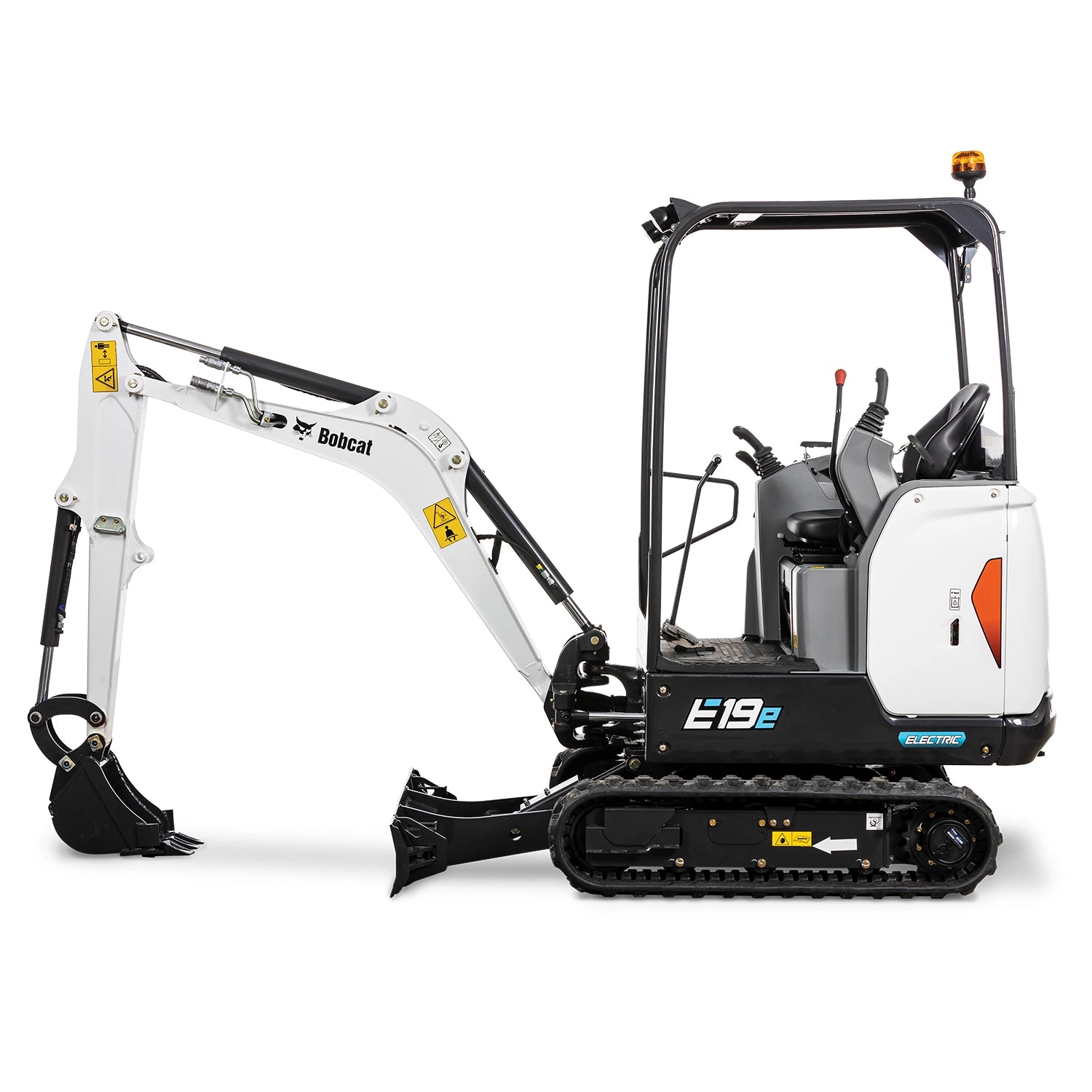

Bobcat E19e Electric Excavator
The E19e has impressive torque in a compact package with a retractable undercarriage and blade. An on-board charger supports 12-hour overnight charging.
- Battery Capacity: 17.3 kWh
- Rated Power: 10 [13.4] kW [hp]
- CHARGE TIME 120V/15A: ~10-12 hours
- CHARGE TIME 240V/50A: ~2 hours
- Weight: 4225 lb.
- Width (Tracks Retracted): 38.6 in.
- Aux Flow: 6.4 gpm
Unlock new possibilities – and work where other machines cannot – with the fully electric E19e mini excavator. This low-noise and zero-emission machine creates unique business opportunities without being limited by working environments or typical working hours. Thanks to excellent controllability, ergonomic controls, superior comfort and impressive precision, you can now achieve more no matter where the job takes you.
Key Features
Zero-emission excavator performance with more reach, capacity and stability for demanding compact jobsites.
17.3 kWh Lithium-Ion Battery System
Three lithium-ion batteries provide 17.3 kWh of capacity, near-instant torque and approximately four hours of continuous runtime without routine battery maintenance.
Zero Emissions, Low Noise
Operate indoors, in dense urban environments and during noise-sensitive hours where diesel equipment is restricted.
Standard Long Arm
The standard long arm reaches 165.9 inches at ground level and digs to 101 inches, helping crews work farther and deeper from one position.
Conventional Tail Swing Stability
Conventional tail swing and an integrated rear counterweight support strong lifting performance and confident digging stability.
38.6-Inch Retractable Undercarriage
Retract for narrow jobsite access, then extend to a 53.5-inch stance for greater stability while working.
Auto-Shift Travel & Smooth Hydraulics
Two-speed auto-shift travel and responsive electric hydraulics deliver productive machine movement and precise attachment control.
Flexible Charging
Use the standard 120-volt on-board charger for overnight charging or the optional 240-volt off-board charger for a full recharge in about two hours.
Lower Maintenance
Fewer components and fluids, maintenance-free batteries, greaseless bushings and accessible service points help reduce downtime.
Bobcat Electric Compact Excavators
Compare battery capacity, compact access, hydraulic flow and machine size to find the right zero-emission excavator for your work.
| E10eUltra-compact electric | E19eViewing | E32eLargest electric excavator | |
|---|---|---|---|
| Battery Type | Lithium Ion | Lithium Ion | Lithium Ion |
| Gross Battery Capacity | 11.5 kWh | 17.3 kWh | 44.5 kWh |
| Estimated Continuous Runtime | Up to 4 hr | Up to 4 hr | Up to 4 hr |
| Operating Weight | 2,648 lbs | 4,212 lbs | 7,862 lbs |
| Retracted Width | 28 in | 38.6 in | 61.8 in |
| Auxiliary Flow | 5.3 gpm | 6.4 gpm | 16.9 gpm |
| Off-Board Fast Charger | Optional | Optional | Optional |
| Zero Emissions | Yes | Yes | Yes |
Features & Benefits
Performance
Reliable Battery Power
Lithium-ion battery technology provides diesel-equivalent performance, near-instant torque, high energy density and maintenance-free battery operation. Expect about four hours of continuous runtime or six to eight hours with recharge breaks.
Hydraulic Power
Full electric-motor torque across the rpm range provides consistent hydraulic power and precise workgroup control under load.
Battery Management System
The battery management system monitors and protects the batteries, optimizes power use and can de-rate or shut down the machine to prevent damage.
E19e Battery System
Three lithium-ion batteries deliver 17.28 kWh of capacity to power the electric motor, hydraulic pumps, workgroup, attachments and tracks.
Lower Operating Costs
Electric energy, fewer parts and fewer fluids reduce operating, maintenance and repair costs.
Low Noise & Zero Emissions
Work indoors, in dense urban areas and during sensitive hours with a fraction of diesel noise and no tailpipe emissions.
Standard Long Arm
The standard long arm adds reach and dig depth while increased cylinder size supports strong breakout force and lifting ability.
Motion Alarm and Beacon Light
A travel motion alarm and bright canopy beacon improve jobsite awareness.
ROPS, TOPS and FOPS
Roll-over, tip-over and falling-object protective structures support operator protection.
Selectable Control Pattern
Select ISO excavator or standard control patterns from an easy-access location without leaving the seat.
Two-Speed with Auto-Shift Travel
Auto shift transitions the travel motors between ranges for strong tractive effort and productive travel without manual downshifting.
Integrated Rear Counterweight
A low center of gravity improves undercarriage stability and digging confidence.
Conventional Tail Swing
Conventional tail swing maximizes lift capacity while the narrow stance supports access through restricted areas.
Standard LED Work Lights
Canopy-mounted front and rear LEDs plus a boom-mounted LED work light support low-light work.
Hydraulically Retractable Undercarriage
Retract to 38.6 inches for access, then extend to 53.5 inches for a wider, stable working footprint.
Retractable Blade
Retract blade extensions for access and extend them for increased ground coverage.
Advanced Hydraulics
Consistent oil flow and responsive cycle times support smooth, precise operation in tight spaces.
Fingertip Auxiliary Controls
Variable flow, detent and fingertip controls provide precise, low-fatigue attachment operation.
Rubber Tracks
Short-pitch interlocking rubber tracks reduce vibration and improve ride quality.
Two-Way Auxiliary Hydraulics
Standard two-way flow powers attachments that need bi-directional hydraulic operation.
Boom-Mounted Quick Couplers
Low-profile auxiliary couplers on the boom make protected, quick attachment connections.
Low-Effort Joysticks & Boom Swing
Joystick-mounted controls provide precise boom swing and auxiliary function control while freeing floor space.
Versatility
Zero Emissions / Small Footprint
Zero emissions, a compact footprint and in-track swing frame enable indoor and tight outdoor work.
Low Noise
Operate with minimal disturbance in urban, occupied and noise-sensitive areas.
Leading Attachment Versatility
Run a wide range of approved attachments, including hydraulic breakers, with standard auxiliary quick couplers.
In-Track Swing Frame
Swing components stay within the tracks during offset digging so the machine can work closer to obstacles.
Hydraulically Retractable Undercarriage
Balance narrow access with a wider working stance.
Dozer Blade with Extensions
Retractable blade extensions improve access and return to full width for coverage.
Uptime Protection
Lower Overall Maintenance
Fewer components and fluids, plus maintenance-free lithium-ion batteries, reduce regular service needs.
On-Board Charger
Common 120-volt connections support overnight charging in about 12 hours.
Off-Board Charger
An available 240-volt fast charger supports a full recharge in about two hours.
Lithium-Ion Batteries & Status Meter
Maintenance-free batteries include overcharge protection, while an easy-to-read indicator helps manage the workday.
Protected Components & Tie-Downs
Protected hydraulic routing and easy-to-reach tie-downs help protect the machine and simplify transport.
Control Lockout & Vandalism Protection
Raising the left console disengages hydraulics, and the lockable battery compartment helps deter tampering.
Comfort
Electric Powertrain
Reduced vibration and noise create a more comfortable operator experience.
Operator-Centric Canopy
Excellent visibility, ergonomic controls and intuitive functionality support all-day productivity.
Ergonomic Controls & Spacious Floor
Adjustable armrests, one-hand travel control and a flat, removable floor mat improve comfort and cleanup.
Fold-Back Foot Pedals
Fold-away pedals maximize available floor space.
Digital Display
Access diagnostics, operating information, battery charge status and error conditions on-screen.
Second Auxiliary Thumb Toggle
Switch between second auxiliary and boom offset from the left joystick without taking eyes off the work.
Serviceability
Fewer Components and Fluids
Battery power eliminates diesel-engine maintenance requirements.
Centralized Grease Bank
Quickly lubricate the slew bearing and slew pinion from one accessible location.
Greaseless Composite Bushings
Greaseless bushings reduce daily checklist items and increase work time.
Two-Piece Floor Mat
An easy-to-remove floor mat simplifies cleaning.
Tool-Free Side Screen
The opening side screen provides wide, convenient service access.
Why Buyers Choose the E19e
Zero emissions and low noise open indoor, urban and environmentally sensitive work opportunities.
17.3 kWh lithium-ion battery system provides approximately four hours of continuous runtime.
Standard long arm delivers 101 inches of dig depth and 165.9 inches of reach at ground level.
Conventional tail swing and 4,212-pound operating weight provide greater lift confidence and stability.
38.6-inch retractable width balances restricted access with a wider 53.5-inch working stance.
Optional fast charging, standard auxiliary hydraulics and reduced maintenance adapt the machine to demanding schedules.
Who Uses the E19e and What For
Indoor & Urban Contractors
- Interior renovation and demolition
- Noise- and emissions-sensitive work
- Municipal and sustainability-focused projects
Utility & Site Crews
- Utility trenches and repair work
- Drainage, foundations and backfill
- Confined outdoor jobsites
Landscape & Rental Teams
- Tree work and hardscape preparation
- Attachment-driven digging and cleanup
- Quiet work near occupied properties
Full Specifications
Performance
| Operating Weight | 4,212 lbs |
| Weight Class | 2 t |
| Travel Speed - Low | 1.1 mph |
| Travel Speed - High | 2.3 mph |
| Arm Digging Force | 2,086 lbf |
| Bucket Digging Force | 4,684 lbf |
| Rated Lift Capacity | 1,028 lbs |
| Lift Radius | 118 in |
| Maximum Dig Depth | 101 in |
| Max Dump Height | 101 in |
| Maximum Reach at Ground Level | 165.9 in |
Hydraulic System
| Auxiliary Pressure | 2,610 psi |
| Auxiliary Standard Flow | 6.4 gpm |
Dimensions
| Length | 150.1 in |
| Overall Length in Travel Position | 150.1 in |
| Width | 38.6 in |
| Height with Operator Cab | 90.5 in |
| Height | 90.5 in |
Electrical System
| Battery Type | Lithium Ion |
| System Voltage | 51.8 V |
| Gross Battery Capacity | 17.3 kWh |
| Motor Make | SCHABMULLER |
| Estimated Run Time | 4 hr |
| Off-Board Charge Time | 2 hr |
| Interior Sound Level (ISO 6396) | 71 dB |
| External Sound Level (ISO 6395) | 81 dB |
Features
| NEMA 5-15 Charge Cable | Not Applicable |
| NEMA 14-50 Charge Cable | Not Applicable |
| Air Conditioning | Not Applicable |
| J1772 Charge Cable with NEMA 14-50 Plug | Not Applicable |
| On-Board Charger | Standard |
| Off-Board Charger | Optional |
| Cab Enclosure | Not Applicable |
| Cab Heater | Not Applicable |
| Heater Air Conditioning | Not Applicable |
| Radio | Not Applicable |
| Auxiliary Hydraulics | Standard |
| Secondary Auxiliary Hydraulics | Standard |
| Quick Tach System | Not Applicable |
| Rubber Track | Standard |
| Selectable Auxiliary Hydraulic Flow | Not Applicable |
| Angle Blade | Not Applicable |
