Doosan DX35-5
Description

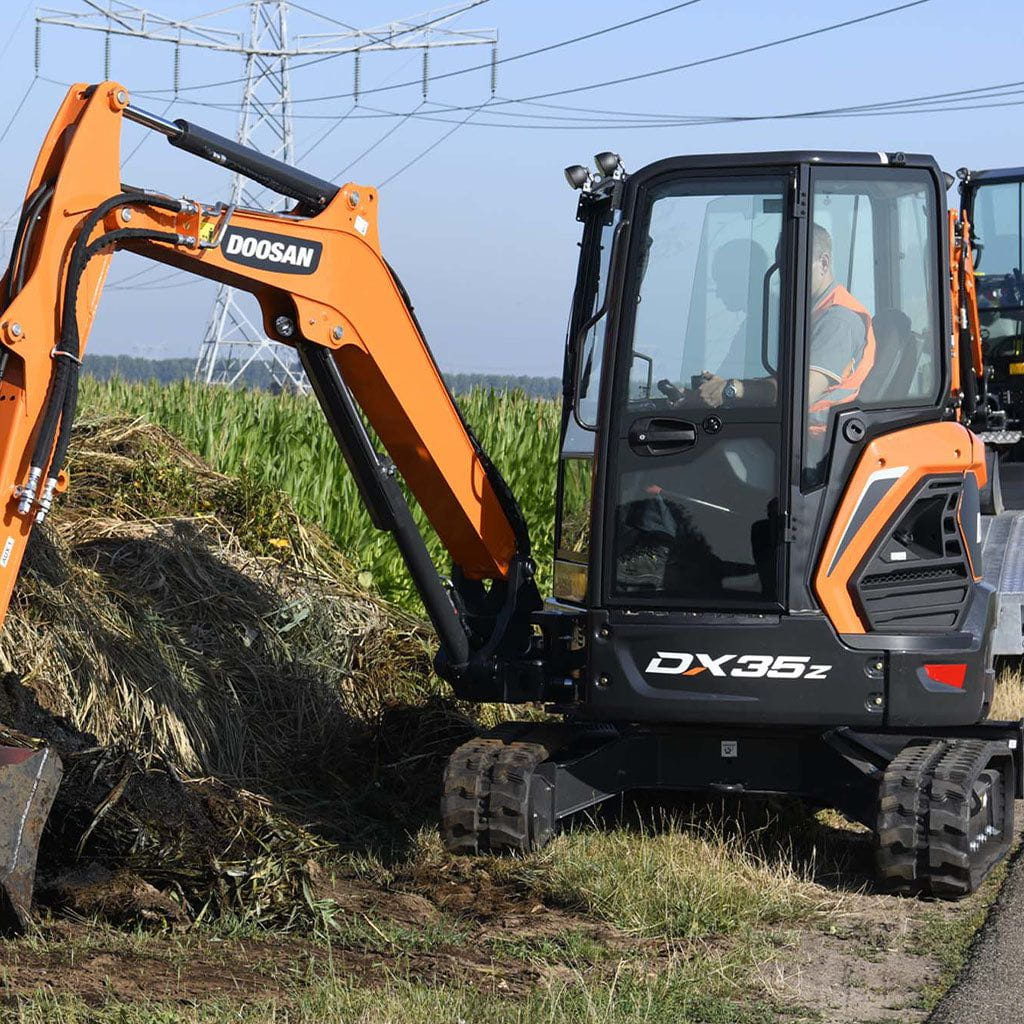

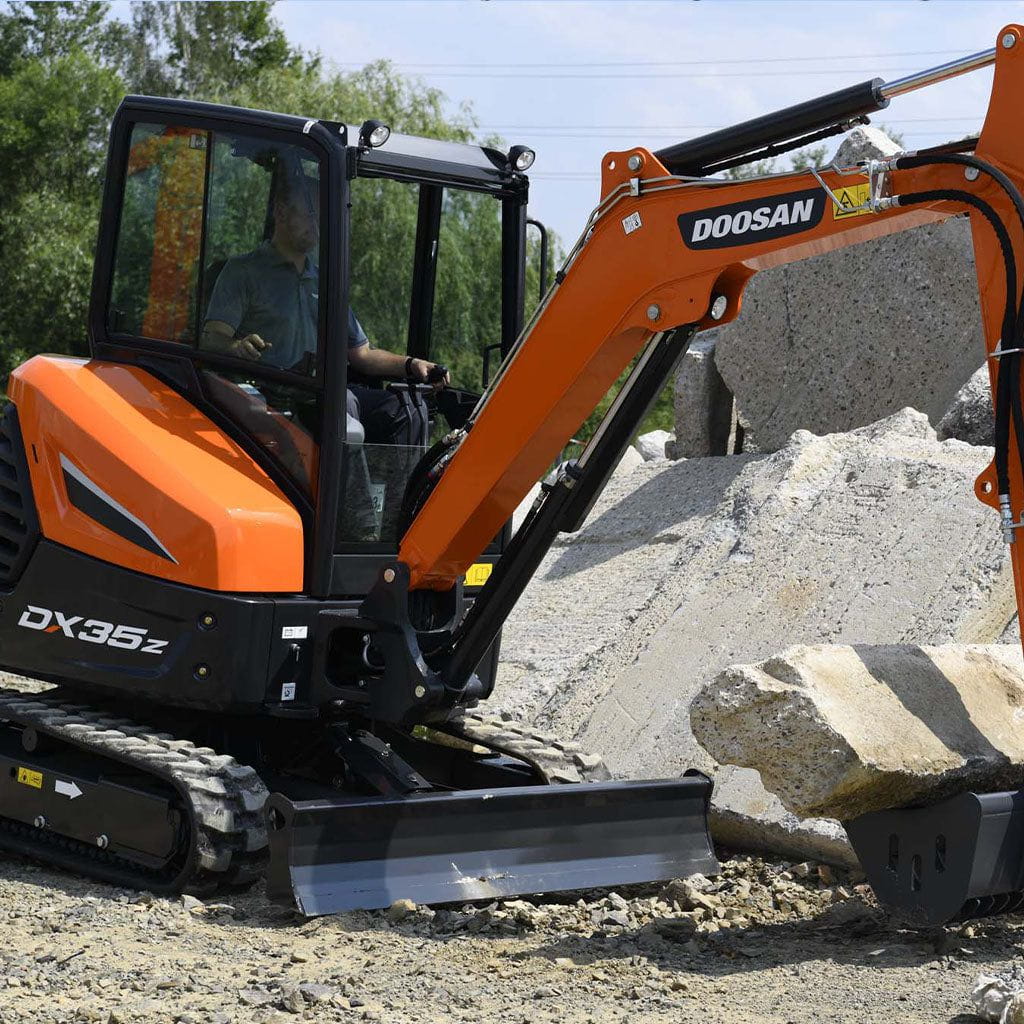

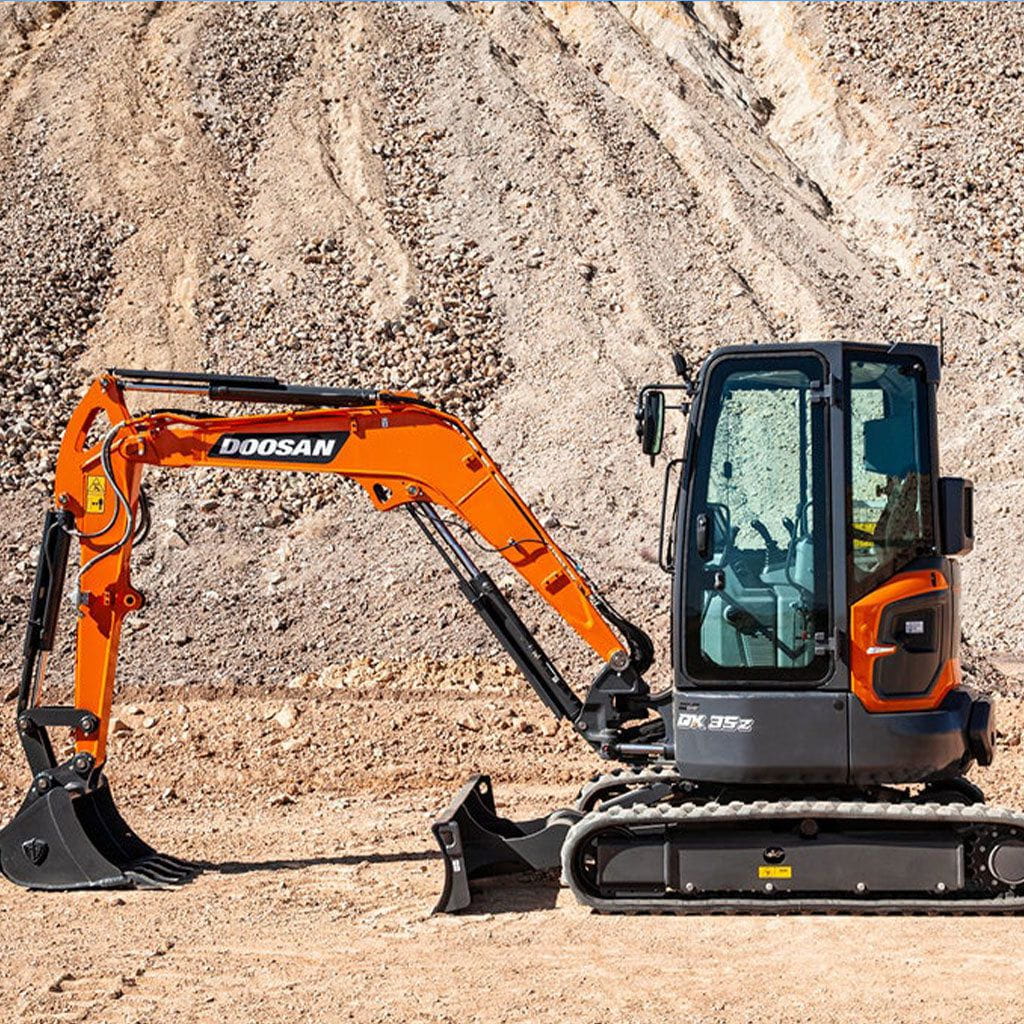

The new zero tail swing Doosan® DX35-5 is now the smallest excavator available from Doosan.
This 3-ton class excavator is designed with zero tail swing, which makes it an ideal machine for operating on congested job sites and working next to other objects.
A dual flange track roller system gives the machine greater over-the-side digging capacity, exceptional slewing and a smooth, comfortable ride.
A roomy cab adds to operator comfort, and tall, wide windows provide the operator with excellent visibility for enhanced productivity and safety.
Specs
Engine
Rated Flywheel Power (Gross) |
33.5 hp @ 2,400 rpm (SAE-J1995) |
Rated Horse Power (Net) |
31.2 hp @ 2,400 rpm |
Max. Torque (Net) |
81 lbf·ft @ 1,600 rpm |
Engine Emissions Tier (EPA) |
Tier 4 |
Hydraulic System
Main Pump: Max. Flow Rate (each) |
26.6 gal/min |
Main Pump: Main Relief Pressure |
3,553 psi |
Undercarriage
Lower Rollers: Quantity Per Side |
4 |
Track Length |
6' 9" |
Swing Mechanism
Swing Performance: Max Swing Speed (At Efficiency) |
8.6 rpm |
Travel System/Drive Mechanism
Travel Performance: Traction Force (Highest Value) |
7658 lbf-ft |
Travel Performance: Traveling Speed - Low (XXX) |
1.6 mph |
Travel Performance: Traveling Speed - High (XXX) |
2.9 mph |
Travel Performance: Gradeability |
30° |
Weights
Operating Weight |
8,193 lb |
Standard Boom Length |
8.04 ft |
Standard Arm Length |
4.36 ft |
Standard Bucket Size |
0.13 yd³ |
Shoe Width |
11" |
Dimensions
Shipping Height - Hose (With Attachment) |
8' 0" |
Shipping Length (Without Attachment) |
15' 9" |
Shipping Width (Standard) |
5' 9" |
Overall Height Over Cab |
8' 0" |
Digging Force (ISO)
Arm Digging Force - Pressure Up |
4,859 lb
|
Bucket Digging Force - Pressure Up |
6,968 lb
|
Options
- Canopy
- Long Arm
- Angle Blade
