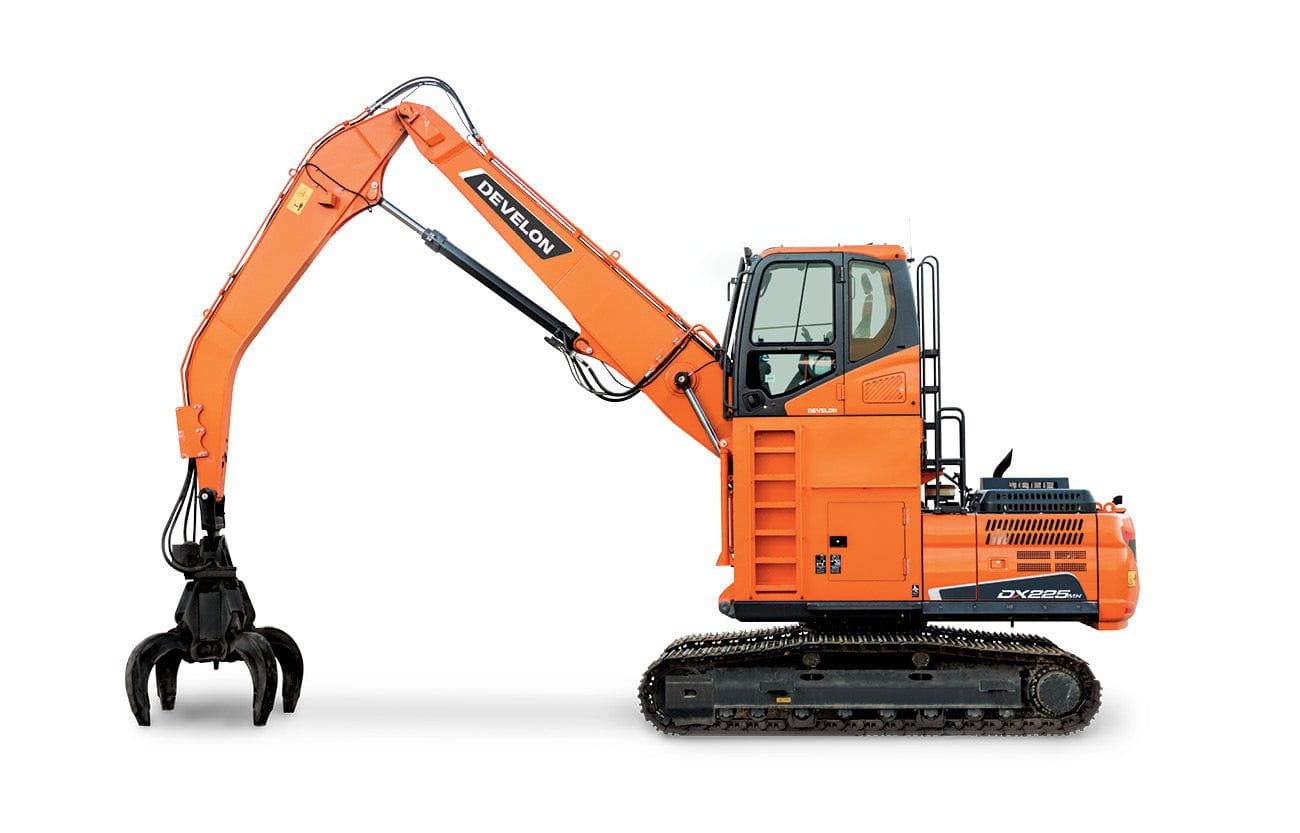

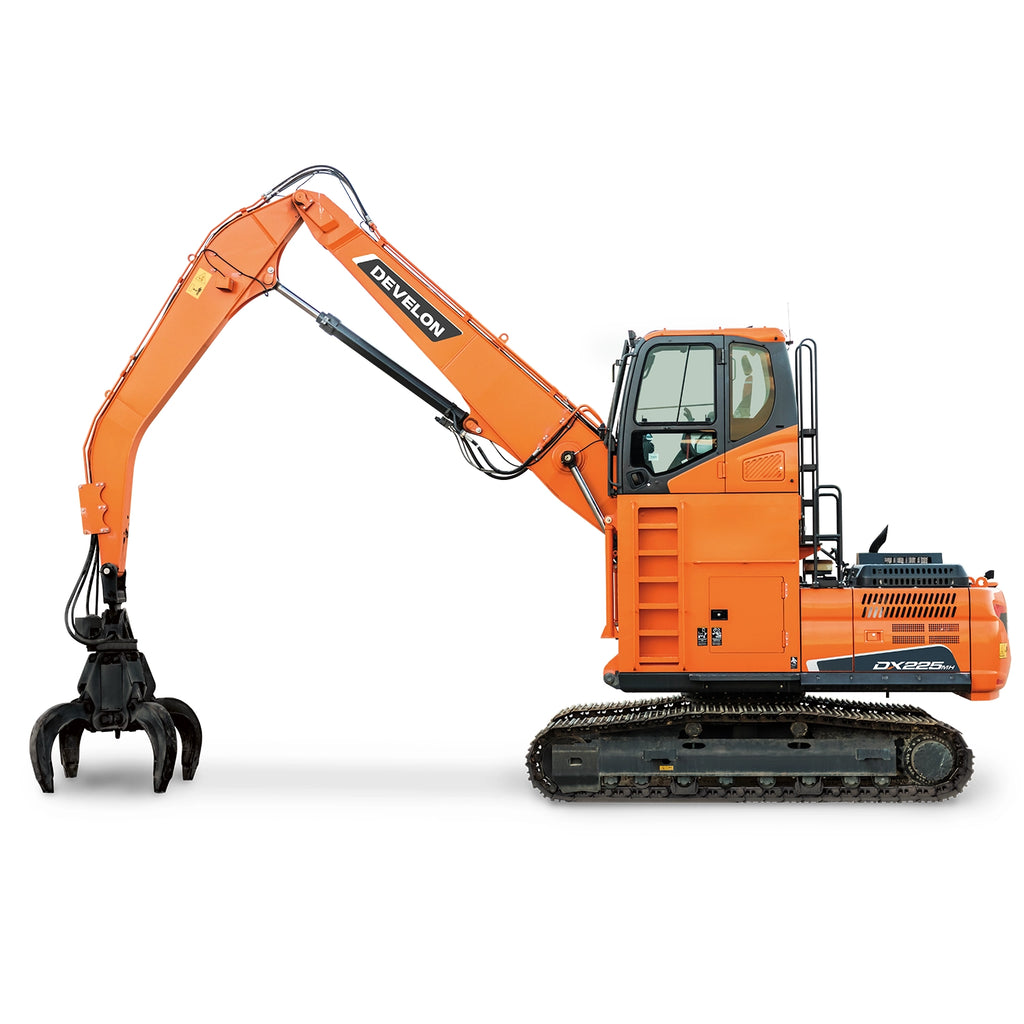

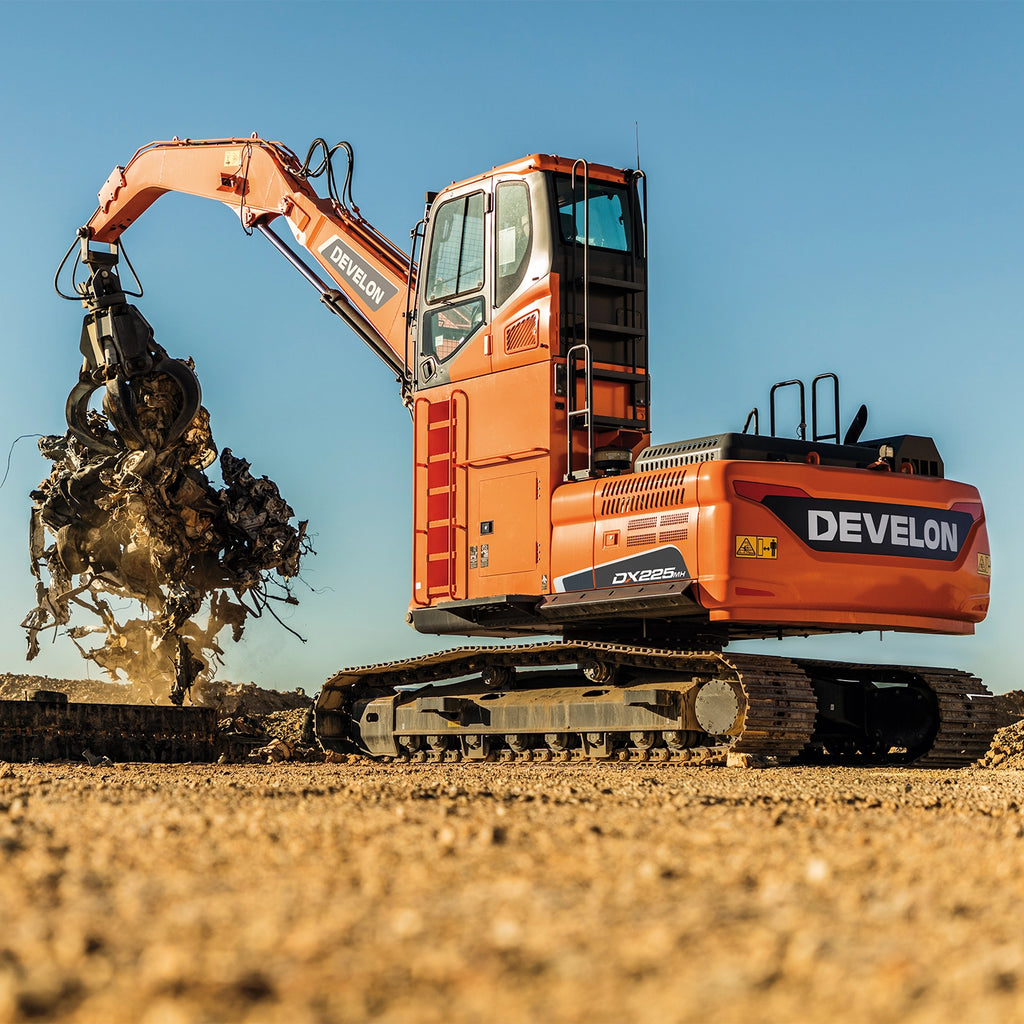

Doosan DX225MH-5
Description
With factory fitted material handling features like a fixed 4 ft. cab riser, straight boom and droop nose arm, counterweight, grapple ready hydraulics, and additional guarding, the Doosan® DX225MH-5 will stand up to many tough material handling tasks.
In addition to four power modes, the DX225MH-5 includes lifting work mode, which provides increased pump torque, low engine RPMs, and an automatic power boost.
Cooling features of the DX225MH-5 include an electric fan clutch, which cools both hydraulic oil and engine coolant.
To comply with Tier 4 emissions standards, the DX225MH-5 incorporates a high-pressure common-rail (HPCR) fuel delivery system as well as cooled exhaust gas recirculation (CEGR) combined with a diesel oxidation catalyst (DOC) and selective catalyst reduction (SCR). Read about our Tier 4 technologies to learn more.
With all of the other performance, comfort and reliability features loaded in all Doosan material handlers, you’ll quickly see why the DX225MH-5 is the picture of productivity.
Specs
Engine
| Rated Flywheel Power (Gross) |
166.3 hp @ 1,800 rpm |
| Rated Horse Power (Net) |
162.3 hp @ 1,800 rpm |
| Engine Emissions Tier (EPA) |
N/A |
Hydraulic System
| Main Pump: Displacement |
7 in³/rev |
| Control Valve: Relief Valve Pressure (Normal) |
4,694 psi |
| Control Valve: Relief Valve Pressure (Boost) |
4,978 psi |
| Main Pump: Max. Flow Rate (each) |
54.55 gal/min |
| Main Pump: Main Relief Pressure |
4,786 psi |
Undercarriage
| Upper Rollers: Quantity Per Side |
2 |
| Track Length |
14' 7" |
| Track Link: Track Gauge |
7' 10" |
Swing Mechanism
| Swing Performance: Max Swing Torque |
60757 lbf-ft |
| Swing Performance: Max Swing Speed (At Efficiency) |
10.9 rpm |
Travel System/Drive Mechanism
| Travel Performance: Traction Force (Highest Value) |
199197 lbf-ft |
| Travel Performance: Traveling Speed - Low (XXX) |
1.86 mph |
| Travel Performance: Traveling Speed - High (XXX) |
3.42 mph |
Weights
| Operating Weight |
60,848 lb |
| Standard Boom Length |
21.33 ft |
| Standard Arm Length |
14.76 ft |
| Shoe Width |
1' 11" |
Dimensions
| Shipping Height - Hose (With Attachment) |
11' 7" |
| Shipping Length (Without Attachment) |
31' 8" |
| Shipping Width (Standard) |
9' 9" |
Working Range
| Max Digging Reach (Ground) |
35' 5" |
| Max Digging Depth |
16' 9" |
| Max Loading Height |
40' 0" |
