Bobcat® Landplane
Description

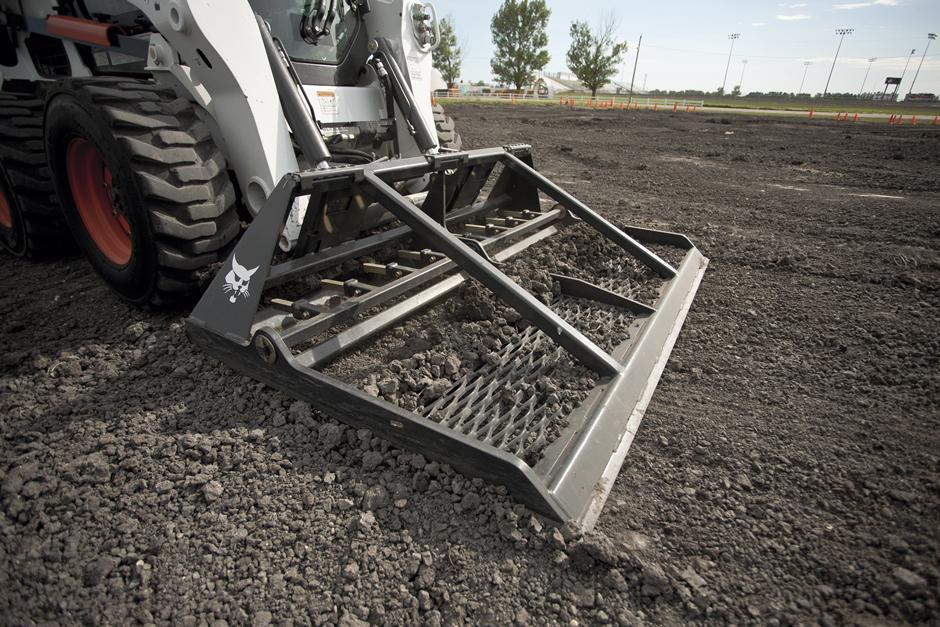

Remove large clods and rocks while leveling and grading with the landplane attachment.
Working in either forward or reverse, the landplane makes it easy to break up hard ground and level a surface. Use the landplane to peel sod or aerate soil for seeding. No more back-breaking hand-raking. Turn a loader into a powerful land-planing tool with the landplane attachment.
Top Tasks
- Pulverize soil clods
- Sift soil to remove large rocks
- Peel sod
- Aerate soil for seeding
- Grade, level and transport materials around worksites
Features
- Bi-Directional Operation: Allows controlled grading and leveling in both forward and reverse directions for maximum planing action.
- Removable Screen: Featured on the deluxe model, the landplane attachment includes a bi-directional scarifier and removable screen to pulverize soil clods, aerate and remove debris.
- Fold-Down Scarifier: Featured on the deluxe model, the scarifier can be lowered to break up hard soil or retracted when not required. Floating feature allows it to scarify in one direction and float in the other.
- Versatility: Designed for worksite versatility, the landplane attachment can be used for transporting materials on site and for sorting unwanted debris from soil. Pulverizes soil clods and aerates soil for seeding and sodding. Even peels and removes sod.
- Bob-Tach™ Mounting System: Makes easy work of attaching and detaching the landplane from the loader. Fast and easy mounting means spending less time on attachment changes and more time on the job.
Specs
| Landplane Sizes | 48" | 72" | 78" |
General
| Operating Weight | 390 lb | 680 lb | 700 lb |
| Length | 46.6 in | 51.5 in | 51.5 in |
| Width | 48 in | 73 in | 79 in |
| Height | 20.6 in | 20.9 in | 20.9 in |
| Cutting Edge Width | 48 in | 73 in | 79 in |
| Working Depth | 3 in | 3.5 in | 3.5 in |
| Cutting Edge | 0.5" x 4" | 0.5" x 6" | 0.5 x 6" |
| Cutting Edge Length | 4 in | 6 in | 6 in |
Compatible Carriers
| Skid-Steer Loaders |
| Bobcat A770 |
✅ |
✅ |
|
| Bobcat S70 |
✅ |
||
| Bobcat S450 |
|
✅ |
✅ |
| Bobcat S550 |
|
✅ |
✅ |
| Bobcat S570 |
|
✅ |
✅ |
| Bobcat S590 |
|
✅ |
✅ |
| Bobcat S595 |
|
✅ |
✅ |
| Bobcat S630 |
|
✅ |
✅ |
| Bobcat S650 |
✅ |
✅ |
|
| Bobcat S740 |
|
✅ |
✅ |
| Bobcat S770 |
|
✅ |
✅ |
| Compact Track Loaders |
| Bobcat T450 |
✅ |
✅ |
|
| Bobcat T550 |
|
✅ |
✅ |
| Bobcat T590 |
|
✅ |
✅ |
| Bobcat T595 |
|
✅ |
✅ |
| Bobcat T630 |
|
✅ |
✅ |
| Bobcat T650 |
|
✅ |
✅ |
| Bobcat T740 |
|
|
✅ |
| Bobcat T770 |
|
✅ |
| Toolcat™ Work Machine |
| Bobcat 5600 |
|
✅ |
|
| Bobcat 5610 |
✅ |
| Mini Track Loaders |
| Bobcat MT55 |
✅ |
||
| Bobcat MT85 |
✅ |
