Compact backfilled trenches with the powerful force and labor-saving efficiency of the packer wheel attachment.
While reducing the need for conventional compaction equipment, the packer wheel also promotes on-the-job safety by eliminating the need for a person working in the trench. The compact design of the packer wheel allows it to operate in small areas, increasing the versatility of the carrier. No auxiliary hydraulics are required to operate.
Top Tasks
Compact backfilled trenches
How It Works

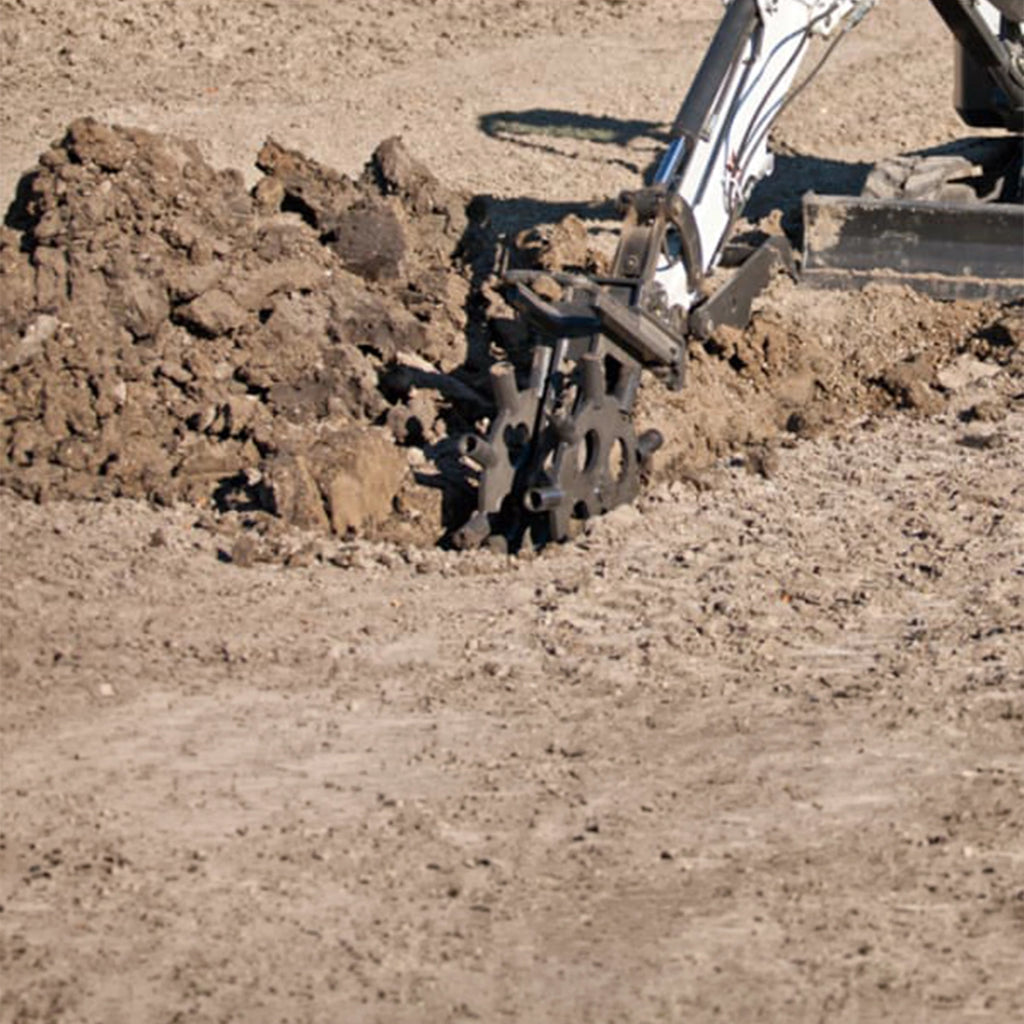

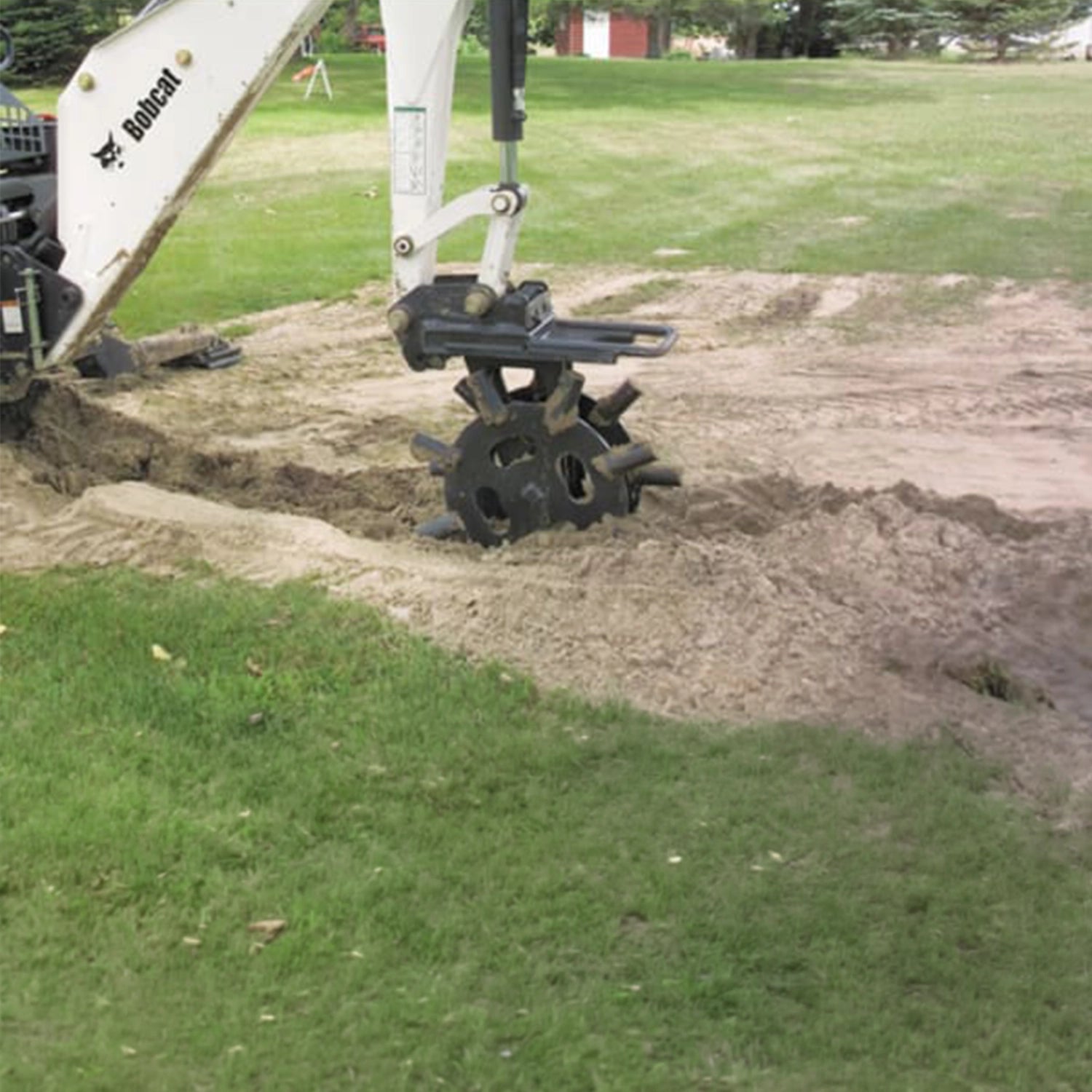

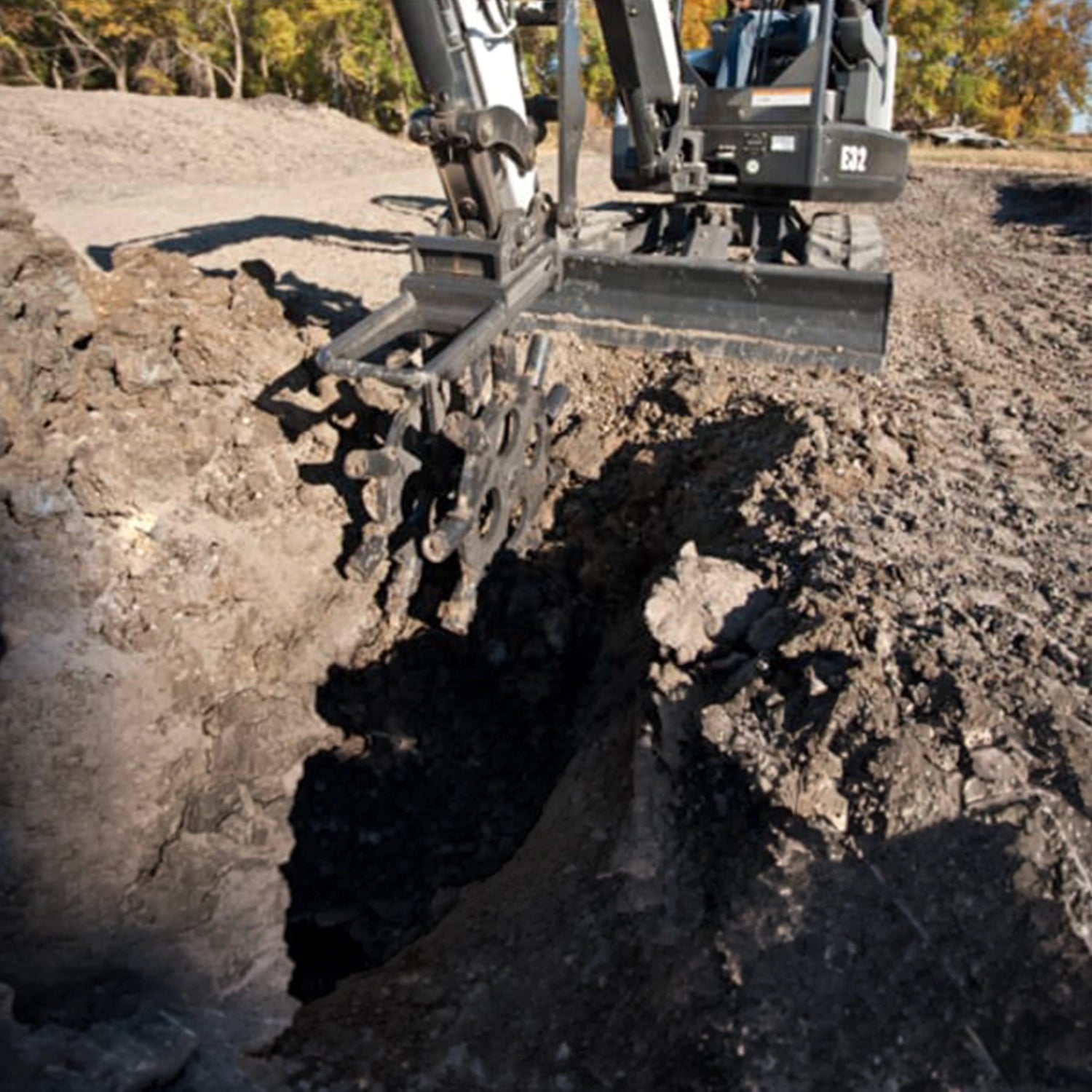

The wheel rolls through the trench using the carrier controls. The weight of the wheel and down pressure from the carrier provides the compacting force.
While in the trench, the open rim sheep foot design of the wheel penetrates through the lift of backfill to compact the fill from the bottom up rather than from the top down. This eliminates bridging and voids for better compaction. The depth of the lift can be varied to match moisture content, texture and other soil conditions.
Features

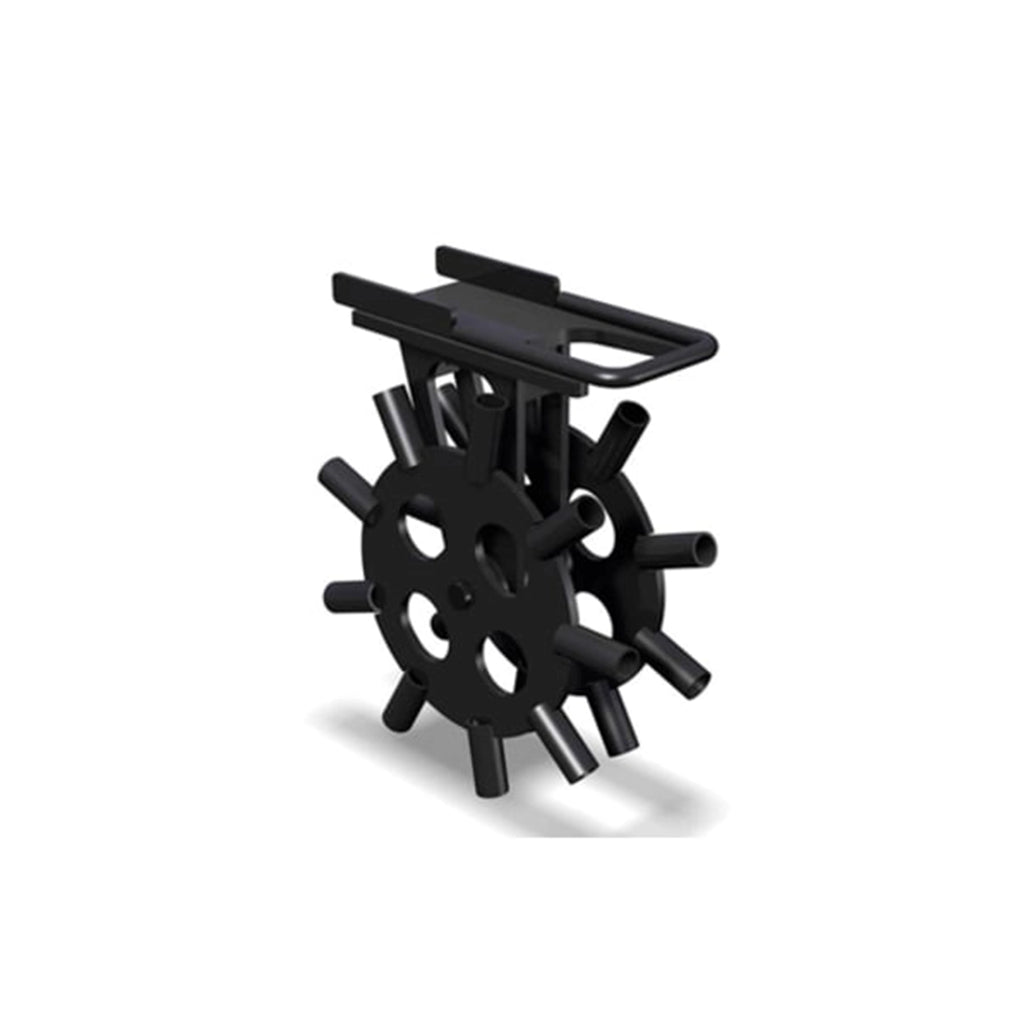

Compact Design: Features an 11-in. wide wheel, designed for maximum performance when compacting backfilled trenches and smaller areas such as around fire hydrants.
Double-Spike Sheep Foot Design: Sheep foot design of the wheel easily penetrates through the lift of the backfill, compacting fill from the bottom up. Eliminates bridging and voids for better compaction action.
Lift Depth: Can be varied to match moisture content, texture and other soil conditions for maximum operating performance.
Specs
General
Operating Weight
385 lb
Length
39.8 in
Width
11 in
Height
30.1 in
Wheel Assembly
2
Wheel Diameter
30 in
Sheepfoot (Hollow Tube)
18 (9 per wheel)
Compatible Carriers
Skid-Steer Loaders
Bobcat A770
✅
Bobcat S450
✅
Bobcat S550
✅
Bobcat S570
✅
Bobcat S590
✅
Bobcat S595
✅
Bobcat S630
✅
Bobcat S650
✅
Bobcat S740
✅
Bobcat S770
✅
Bobcat S850
✅
Compact Track Loaders
Bobcat T450
✅
Bobcat T550
✅
Bobcat T590
✅
Bobcat T595
✅
Bobcat T630
✅
Bobcat T650
✅
Bobcat T740
✅
Bobcat T770
✅
Bobcat T870
✅
Compact Excavators
Bobcat E26
✅
Bobcat E26
✅
Bobcat E32 25 HP
✅
Bobcat E32 M-Series
✅
Bobcat E35 25 HP
✅
Bobcat E35 33 HP
✅
Bobcat E35 M-Series
✅
Bobcat E42
✅
Bobcat E45
✅
Bobcat E50
✅
Bobcat E55
✅
Bobcat E63
✅
