Offers & Financing
Pay as low as 0% for 48 months* or choose a $2,500 USD*/$3,300 CAD* rebate on a L23 small articulated loader.
Download Spec Sheet:
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | Bobcat |
| Model: | L23 |
| Machine Type: | Articulating Loader |
| Coupler: | CII or Full Bob-Tach |
|
Engine
|
|
|---|---|
| Horsepower: | 24.8 |
| Emissions: | Tier 4 |
|
Performance
|
|
|---|---|
| Rated Operating Capacity (ISO): | 1,395 lb. |
| Operating Weight: | 3790 lb |
| Travel Speed: | 8.2 mph |
| Height to Bucket Hinge Pin: | 85.4 in. |
|
Hydraulics
|
|
|---|---|
| Aux. Standard Flow: | 12.1 GPM |
|
Dimensions
|
|
|---|---|
| Height: | 78.1 in. |
| Length: | 122.4 in. |
| Width: | 44 IN. (WITH BUCKET) |
| Wheelbase: | 47.2 in. |
| Fuel Tank: | 9.6 GAL |
| Wheelbase: | 47.2 in. |
Description

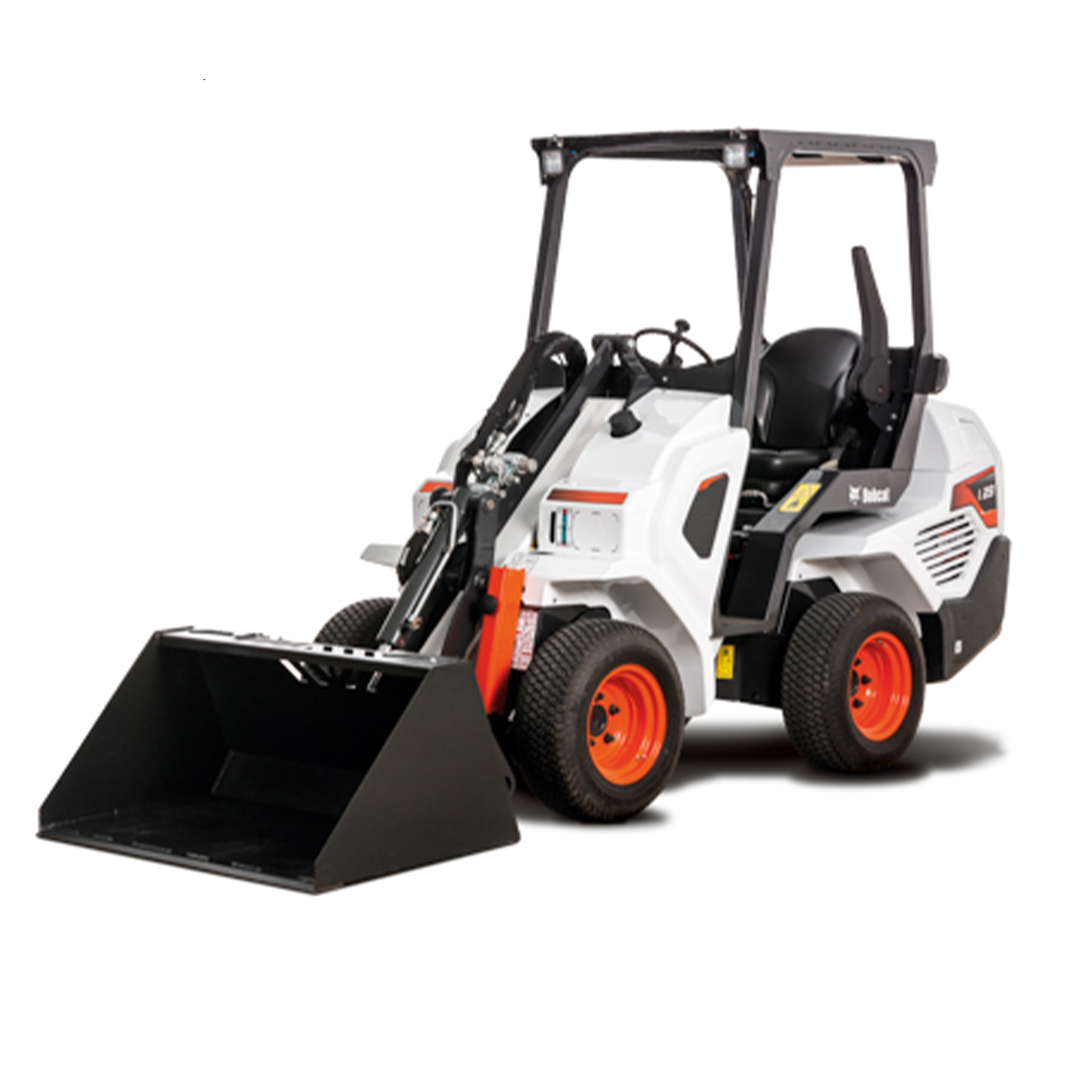

Bobcat L23 Small Articulated Loader
The Bobcat L23 small articulated loader is small enough to fit in small lots, backyards and other tight jobsites and tough enough to take on the job with minimal ground disturbance. A tight-turning articulation joint allows maneuverability in confined spaces. It delivers an impressive lifting capability to maximize productivity. And you can add Bobcat attachments for added versatility.
- Minimal ground disturbance
- Tight-turning articulation joint to get through tight spaces
- Impressive lifting capacity
The L23 small articulated loader features an articulation joint that enables the rear tires to match the path of the front tires as they turn, resulting in a nimble machine that easily navigates small work zones. It does your heavy lifting with minimal ground disturbance thanks to a turf-safe mode that keeps the wheels from scrubbing on the ground. It lifts heavy loads and you can add optional rear counterweights to increase lift capacity. The 25-hp, low-rpm, high-torque engine provides performance that is more forgiving when pushing the machine to its limit under load. Added comfort features and easy-to-use controls help maximize your productivity.
Features:
Small articulated loaders deliver precise maneuverability. The articulation joint enables the rear tires to match the path of the front tires as they turn, resulting in a highly nimble machine that navigates around obstacles with ease and works well in enclosed yards and small work zones.
With their tight-turning articulated steering and light overall footprint, Bobcat® small articulated loaders limit cuts or tears in the turf when turning or hauling a load. After the job is complete, you’ll have fewer time-consuming surface repairs to make.
Bobcat® small articulated loaders can lift and handle heavy loads, and they include a standard integrated counterweight for optimal lift capacity. You can add on optional rear counterweights to further increase lift capacity and productivity.

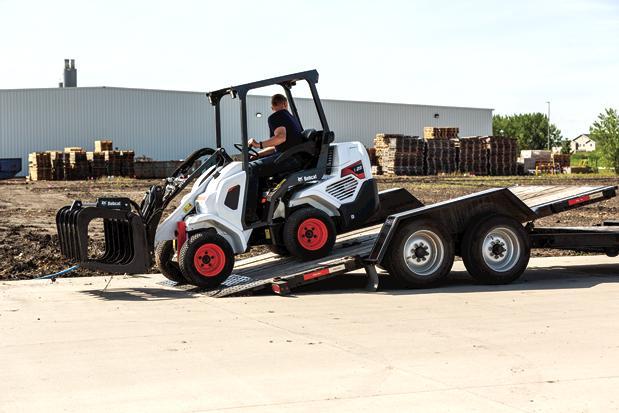

Small articulated loaders are highly transportable and relatively lightweight, enabling you to quickly get your machine to the job and get to work. They easily fit on pan trailers or dump trailers – and even some enclosed trailers that are used to transport small-frame skid-steer loaders.
The dependable 25-hp, 2600 rpm engine provides generous torque at a lower rpm, offering performance that is more forgiving when pushing the machine to its limit under load.
With their efficient cooling systems, Bobcat small articulated loaders offer leading performance for improved operation and component protection.
Side and front inlets bring cool air into the engine compartment and send it through the screened rear exit. The rear radiator screen is removable for easy cleanout, and its corrugated steel construction provides excellent durability. A separate temperature-controlled hydraulic oil cooler operates as needed to ensure quieter operation as well.
Based on operating conditions, Bobcat® small articulated loaders automatically enable one of two traction modes – High-Traction mode for control over rough and slippery terrain or Turf-Safe mode for the least possible ground disturbance. The optional traction assist switch enables you to momentarily override the automatic modes to travel through adverse conditions.
A simple twin-pedal design on small articulated loaders enables quick and easy direction changes: one pedal moves you forward, the other moves you in reverse.
This style of travel control is easy for operators to master, making the small articulated loader a great choice for seasonal employees or rental customers. It’s also convenient and simple for operators who need to understand controls for multiple machines.
Small articulated loaders include side and rear windows that open to provide fresh airflow through the cab, providing added comfort for the operator.
Compared to other small articulated loaders, the interior of Bobcat models is engineered with more space for the operator, with special attention paid to cab height, foot room and room between the seat and the steering wheel. You’ll enjoy more room which leads to better productivity during long hours on the job.
The steering wheel and joystick are simple to reach and intuitive to use, with fingertip auxiliary or telescopic controls that facilitate quick, simple operation – as compared to mechanical switches.
Bobcat® small articulated loaders also provide variable flow control similar to skid-steer and compact track loaders, unlike the standard mechanical levers found in other machines.
Add the optional cab enclosure with the heated seat and you’ll stay comfortable and productive in cold and wet weather. The heated seat helps keep your body warm and comfortable while clearing snow or working in frigid temperatures. Strategically placed, louvered vents help quickly defrost windows and provide direct heat to operators, providing versatility for tackling more work during winter months. Window panels can be added or removed, giving you added flexibility to adapt with the weather to keep operators comfortable in every season.
To protect the machine when working in tight areas and around obstacles, Bobcat® small articulated loaders have cab corner protection. Rubber bumpers help protect the cab’s corners while articulating the loader.
Add additional protection – and worry less about potential impact damage to the cooling package and radiator – by installing the optional rear guard accessory.
Small articulated loaders feature an easy-to-read, backlit instrumentation panel that provides visibility to operating information, critical machine errors and warnings.
Bobcat small articulated loaders are designed to make daily maintenance and regular service easy and efficient. They feature easy access to the battery terminal, a high-capacity air filter for long life, a maintenance-free engine accessory drive belt and centrally located access to fuses and relays.
The dual-element, high-capacity filter with visual indicator is one feature that makes Bobcat® small articulated loaders easy to maintain. The air filter delivers clean airflow to your engine and excellent contaminant-holding capacity for long life and maximum component protection.
A dependable serpentine accessory drive belt requires no tensioning and no maintenance.
Fuses and relays on Bobcat small articulated loaders are centrally located behind a cover inside the cab.
Bobcat® small articulated loaders feature the Bob-Tach® attachment mounting system for using a variety of attachments. They can also be equipped with the optional Power Bob-Tach system for changing non-hydraulic attachments without leaving the comfort of your cab.
For even more attachment possibilities, Bobcat® small articulated loaders include auxiliary hydraulics. A maximum flow of up to 12 gpm and up to 2,900 psi gives you powerful performance and superb work results. Pressure-release quick couplers relieve system pressure for easy hydraulic hookup and removal.

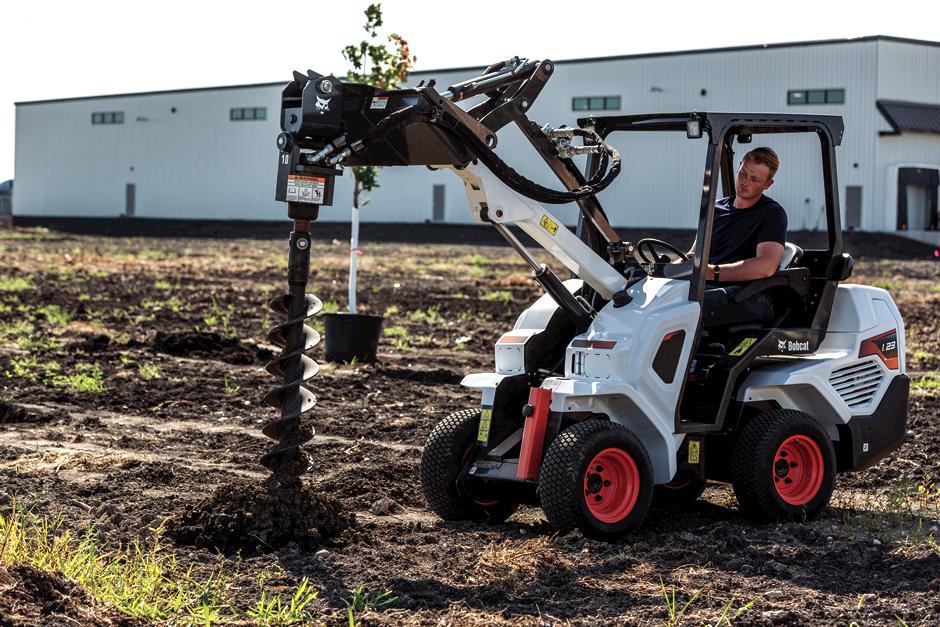

With 30+ compatible attachments, a small articulated loader can be used to complete many kinds of unique jobs that usually require multiple machines. Bobcat attachments deliver the most versatility for your equipment investment. Whether it’s handling dirt and snow, digging holes, doing brushwork or moving pallets of materials – with the right attachment, you can adapt to a new task in minutes.
Bobcat L23 Specs
| Horsepower | 24.8 hp |
|---|---|
| Rated Operating Capacity - Straight | 1,395 lbs. |
| Rated Operating Capacity - Articulated | 1,159 lbs. |
| Operating Weight | 3,790 lbs. |
| Auxiliary Standard Flow | 12.1 GPM |
| Width (Over Tires) | 43.2 in. |
| Emissions Tier | Tier 4 |
|---|---|
| Engine Cooling | Liquid |
| Engine Fuel | Diesel |
| Horsepower | 24.8 hp |
| Turbocharged Engine | No |
| Rated Operating Capacity - Straight | 1,395 lbs. |
|---|---|
| Rated Operating Capacity - Articulated | 1,159 lbs. |
| Tipping Load - Straight | 2,789 lbs. |
| Tipping Load - Articulated | 2,317 lbs. |
| Operating Weight | 3,790 lbs. |
| Travel Speed | 8.2 mph |
| Fuel Tank | 9.6 gal. |
|---|
| System Relief @ Quick Couplers | 2,900 psi |
|---|---|
| Auxiliary Standard Flow | 12.1 GPM |
| Drive Type | Hydrostatic Pump Driving 4 Independent Wheel Motors |
|---|
| Length with Bucket | 122.4 in. |
|---|---|
| Width with Bucket | 44 in. |
| Height | 78.1 in. |
| Height to Bucket Hinge Pin | 85.4 in. |
| Max Reach | 16.8 in. |
| Turning Radius Inside | 77.2 in. |
| Turning Radius Outisde | 100.9 in. |
| Wheelbase | 47.2 in. |
| Articulation Angle | 43° |
| Dump Angle @ Max Height | 40° |
| Ground Clearance | 5.5 in. |
| Rollback Angle | 32° |
| Tire Size | 23x8.5-12 |
| Wheel Tread | 34.4 in. |
Buying Factors
- Low ground disturbance compared to SSL, CTL and MTL
- Compact size
- 48” width means they fit on a standard city sidewalk
- Fits on smaller trailers
- No CDL required for operation
- Easy entry and exit
- Can replace manual labor
Customers and Applications
The Bobcat small articulated loader is an ideal machine for small-business owners or first-time buyers thanks to its easy operation, compact size and ability to fit in some of the tightest jobsites.
Some of the main applications include:
- Small landscape, nursery
- Landscape/hardscape improvements on established lawns
- Smaller projects in tight spaces
- Fence installation – whether residential or commercial
- Planting trees and shrubs
- Synthetic Turf installation
- Material handling on worksites
- Tree services
- Removing dead trees and branches
- Storm cleanup
- Brush clearing
- Debris handling
- Facilities maintenance, groundskeeping
- Sidewalk sweeping
- Snow removal
- Light demolition
Features
Tight Turning Radius
The Bobcat small articulated loader delivers precise maneuverability, thanks to its articulation joint that enables the rear tires of the loader to match the path of the front tires as they turn. This results in a highly nimble machine that navigates around obstacles with ease and works well in enclosed yards and small work zones.
Minimal Ground Disturbance
With its tight-turning articulated steering and light overall footprint, the Bobcat small articulated loader won’t cause cuts or tears in the turf when turning or hauling a load. This leads to fewer surface repairs after the job is complete.
Heavy Lifting Capacity. Small Package.
The Bobcat small articulated loader can lift and handle heavy loads. You’ll get excellent lifting capacity in a compact machine. It brings outstanding lifting performance to a wide range of jobsites.
Telescoping Lift Arm (L28)
The L28 features a telescoping lift arm that extends to a lift height of 104 inches, enabling customers to conveniently reach trailer dump height, backdrag, adjust attachment and more. It includes an innovative dual-cylinder design that keeps the load level as the bucket moves. The telescopic cylinder is synchronized with a hydraulic leveling link, providing leveling assist and preventing spillage over the back of the bucket.
High Tractive Effort
The Bobcat small articulated loader features series-connected drive motors that allow the machine to keep moving in rough or uneven terrain – even if one or more wheels are not touching the ground.
Automatic Traction Mode
When operating the small articulated loader, the machine automatically enables one of two traction modes, based on operation.
- High Traction: When the steering wheel is not turning, improved traction provides excellent control and mobility over rough or slippery terrain.
- Turf Safe: While actively steering, turf-safe mode keeps the wheels from scrubbing on the ground, causing the least possible ground disturbance.
Optional Traction Assist Switch
Similar to a differential lock, the traction assist switch enables customers to momentarily override the automatic modes, enabling all wheels to travel through adverse conditions such as mud or sidehill travel.
