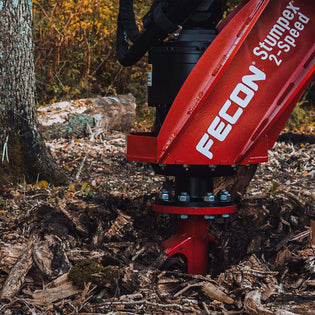

Fecon Stumpex - Auger Stump Grinder attachment
The Fecon Stumpex stump grinder mounts to excavators and skid steers, with as little as 20 gpm hydraulic output. The Stumpex low RPM and 33,600 ft. per lb. of torque enables it to draw itself down into any species of stump. The Stumpex can draw into stumps 8” – 28” in diameter and up to 20” deep in a single pass. Larger diameter stumps are processed by making additional passes. A threaded replaceable cone and staggered AR500 cutting blades grind out stump and root material with minimal discharge. Low maintenance costs, high production, and less clean-up make the Stumpex a great opportunity for stump grinding contractors in land clearing, tree care and municipal applications.
Be sure no one is within 15 feet of the working area to ensure safety. Always survey your working area for obstructions and call before you dig to avoid utilities.
Always properly maintain your Sumpex by inspection daily and making sure your blades are properly sharpened. Stumpex blades should maintain a 30 degree angle to work efficiently. Remember to always use your Fecon-provided sharpening gauge.
Fraction of work time compared to conventional stumpers
No carbide tools to replace
Low maintenance (greasing & sharpening only)
Low RPM auger bit (7-16 RPM) leads to easy clean-up and has no high speed flying debris for safer work zone
Mount on skid steers with 20-42 GPM / 2,500 to 4,000 psi
Mount on excavators with 12-20 ton rating and back hoes
|MODEL||MOUNT||BIT DIAMETER||WEIGHT||EXC SIZE (METRIC TON)||FLOW REQUIRED|
|SHX33SS||SS||32" /813MM||1,368 LBS||-||20-42 GPM|
