Download Spec Sheet
Get detailed specifications, dimensions, and performance data for this UltraPlow | SnowWolf.
|
General Info
|
|
|---|---|
| Condition: | Showroom |
| Manufacturer: | SnowWolf |
| Model: | UltraPlow |
|
Engine
|
|---|
|
Performance
|
|---|
|
Hydraulics
|
|---|
|
Dimensions
|
|---|
Description

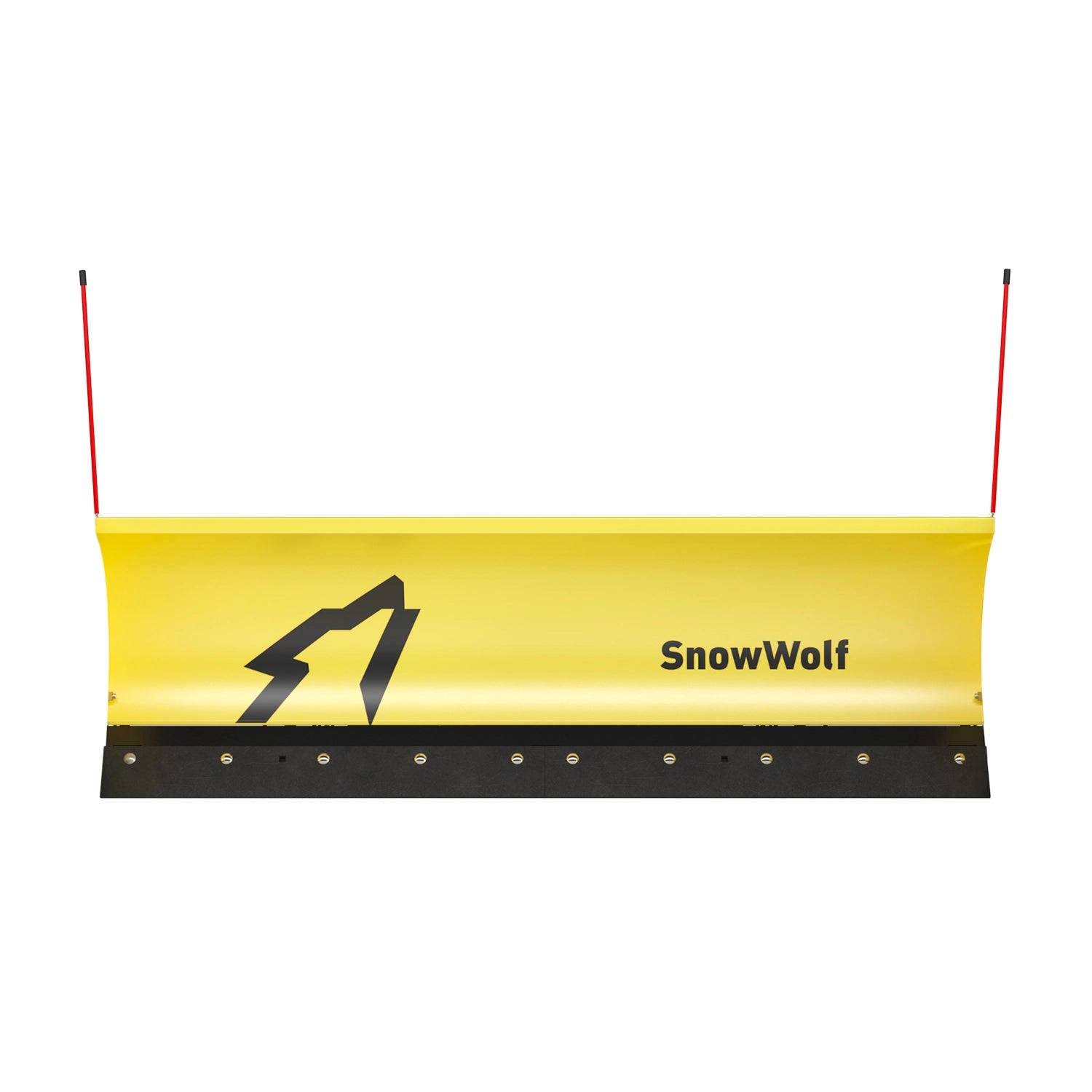

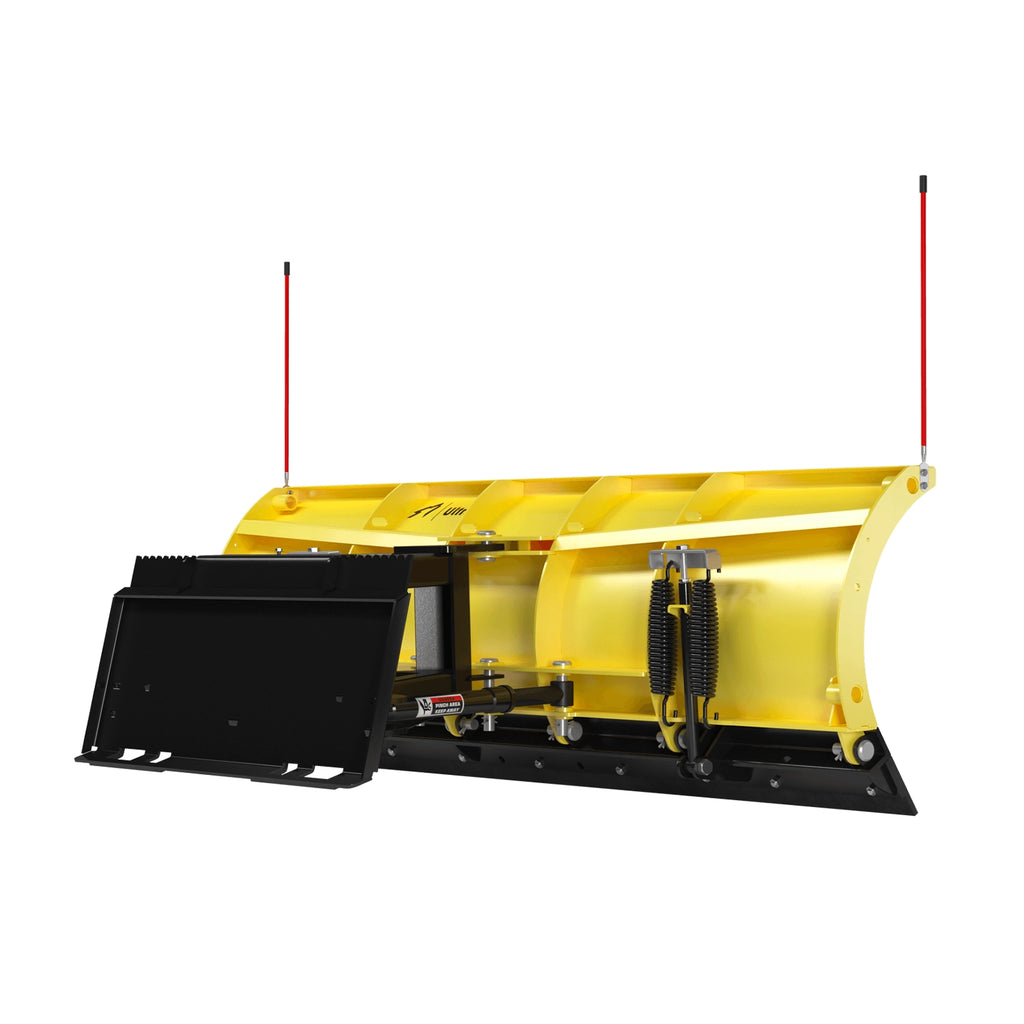

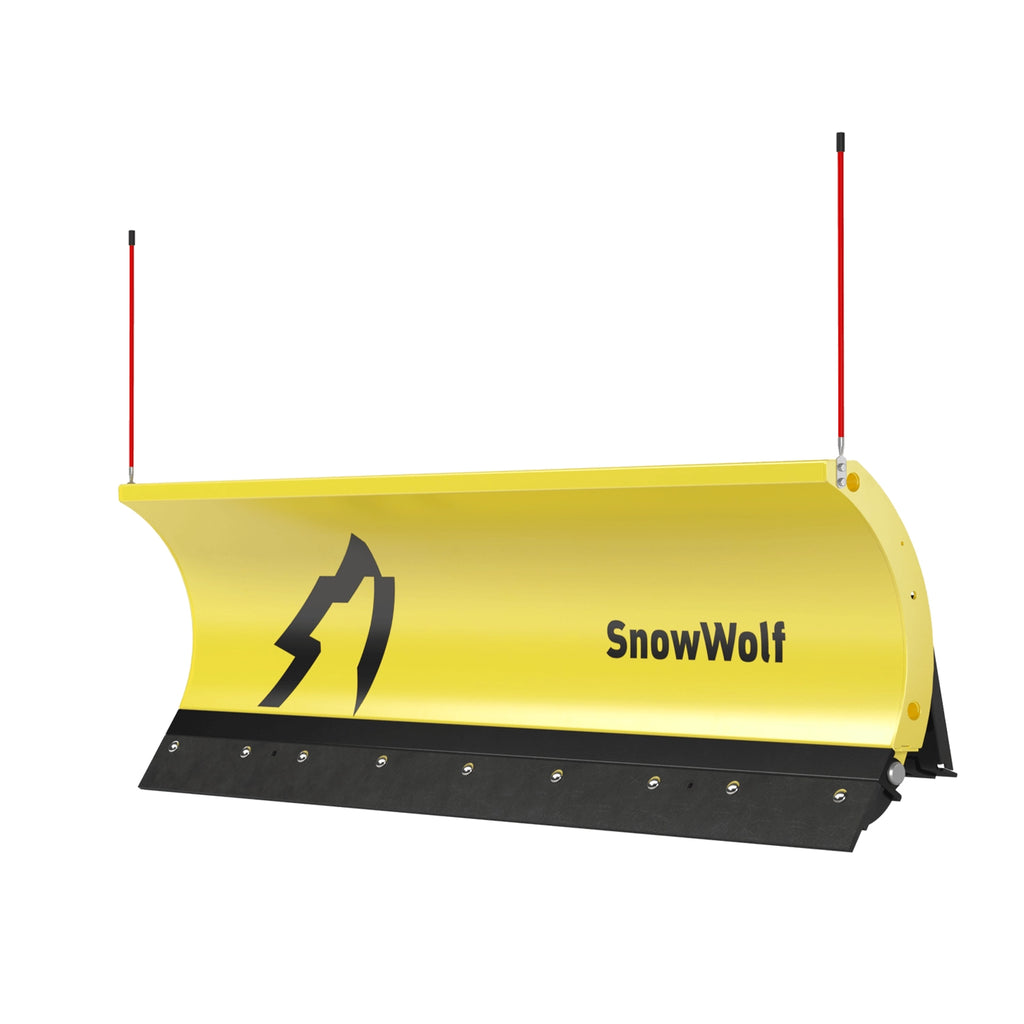

UltraPlow by SnowWolf
For: Skid Steers & Compact Wheel Loaders 6,000-14,000 lb. Machinery
Description
Ultra Series is the flagship of our product line. For those looking for a snow plow without compromise that is suitable for the largest skid steers on the market today! Tested and time-proven on the industry’s largest skid steers, the Ultra Series can handle it all!
Specifications
| Model Number | Ultra-72 | Ultra-84 | Ultra-96 | Ultra-108 | Ultra-120 | Ultra-132 | |
| Blade Width | 6' | 7' | 8' | 9' | 10' | 11' | |
| Blade Width at Full Angle | 59" | 68.8" | 78.6" | 88.5" | 98.3" | 114.6" | |
| Blade Height | 30" | 30" | 30" | 30" | 30" | 30" | |
| Weight (lbs.) (actual-not ship weight) | 732 | 774 | 816 | 858 | 920 | 962 | |
| Moldboard Gauge | 10 Ga. | 10 Ga. | 10 Ga. | 10 Ga. | 10 Ga. | 10 Ga. | |
| Trip Springs | 4 Ext | 4 Ext | 4 Ext | 4 Ext | 4 Ext | 4 Ext | |
| Wear Shoes | Opt. | Opt. | Opt. | Opt. | Opt. | Opt. | |
| Cutting Edge | 5/8" x 6" | ||||||
| Angle Rams | 1-1/2" x 13" Nitro Steel | 2" x 13" Nitro Steel UltraMAX | |||||
| Vertical Ribs | 6 | 6 | 6 | 6 | 8 | 8 | |
| Moldboard Radius | 14" | 14" | 14" | 14" | 14" | 14" | |
| Full Down Pressure | Yes | Yes | Yes | Yes | Yes | Yes | |
| Spring Assist Down Pressure | Opt. | Opt. | Opt. | Opt. | Opt. | Opt. | |
| Universal Skid Steer Compatible | Standard | ||||||
| Cross Over Relief Valve | Opt. | Opt. | Std. | Std. | Std. | Std. | |
| SoftTouch™ Cutting Edge | Opt. | Opt. | Opt. | Opt. | Opt. | Opt. | |
| UltraMAX HD Cylinder Kit | Opt. | Opt. | Opt. | Std. | Std. | Std. | |
| High Carbon Curb Guards | Opt. | Opt. | Opt. | Opt. | Opt. | Opt. | |
Features
| Features | Benefits |
|---|---|
| Dual Pivot A-Frame | Twice the strength, half the worries! Over 270 lbs. of tough! |
| Nitro Hydraulic Cylinders | Five times more salt-resistant than industry standard chrome cylinders |
| Plowing Efficiency | The SnowWolf Ultra has a very tightly rolled moldboard and angles a full 35° to maximize efficiency and minimize fuel and horsepower requirements |
| Massive Construction | The SnowWolf Ultra is designed to take abuse from the largest skid loaders. At approximately 100 pounds per foot of plowing width, you know the Ultra means business. |
| Oscillation | The Ultra's exclusive oscillation design allows the blade to follow the contours of the plowing surface. |
Full Specifications
General
| Condition | Showroom |
Engine
Performance
Hydraulics
Dimensions & Weight
Specifications subject to change without notice. Contact your local Carleton Equipment dealer to confirm details.
