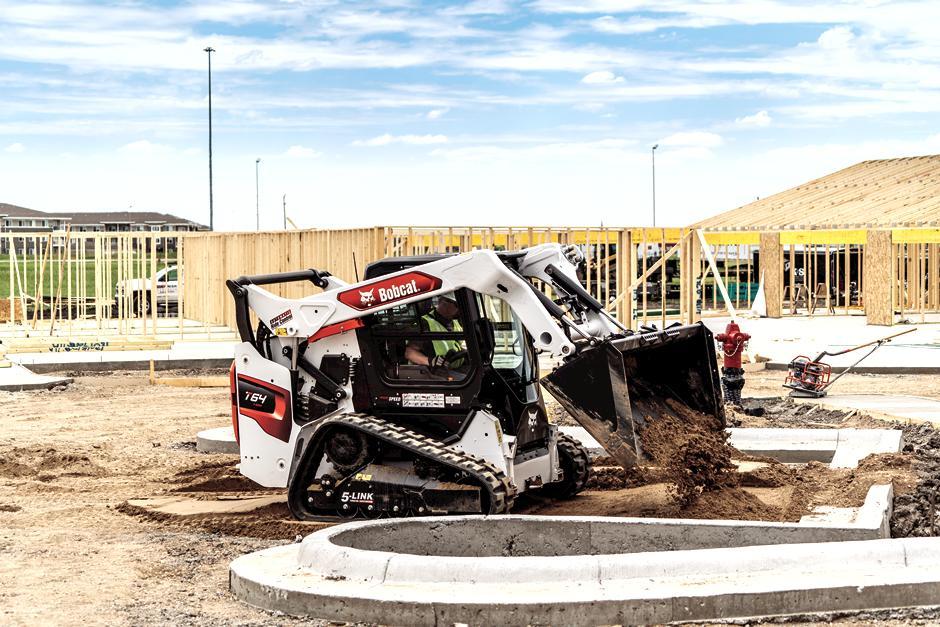

Bobcat® T64 Compact Track Loader

Package:

• SJC

• Power Bobtach
• Rear View Camera

A redesigned Bobcat engine and lift arms with cast-steel construction  deliver powerful performance and durability in the Bobcat® T64 R-Series compact track loader. Engineered to provide the performance needed while reducing and simplifying routine maintenance, the 68-hp T64 offers increased lift capacity and lift height, an inline engine and direct-drive system, excellent visibility and unmatched comfort. This vertical-lift-path compact track loader – also referred to as a skid-steer with tracks – pushes through where other equipment can’t, even in soft, sandy or muddy conditions.

Added comfort features, including a one-piece sealed and pressurized cab and innovative displays, improve operator productivity on long work days. Plus, a cast-steel Bob-Tach® attachment mounting system provides a stronger connection point. Combine those with enhanced hydraulics, powerful breakout forces and fast cycle times, and you have a revolutionary machine that helps you do more.



Specs

Engine

Emissions Tier (EPA)	Tier 4
Engine Cooling	Liquid
Engine Fuel	Diesel
Horsepower	68 hp
Turbocharged Engine	Optional

Performance

Rated Operating Capacity (ISO)	2,300 lb
Operating Capacity (50% of Tip)	3,286 lb
Tipping Load	6,571 lb
Operating Weight	8,727 lb
Travel Speed	7.2 mph
Travel Speed (2 - Speed Option)	10.2 mph
Ground Pressure (Rubber)	5.7 psi

Capacities

Fuel Tank

28.3 gal

Hydraulic System

System Relief @ Quick Couplers	3,500 psi
Auxiliary Std Flow	23.3 gal/min
Auxiliary High Flow	30.3 gal.min

Dimension

Length	134.9 in
Length Without Attachment	107 in
Length With Standard Bucket	134.9 in
Width	67 in
Width (With Bucket)	68 in
Height	80.5 in
Height With Operator Cab	80.5 in
Height to Bucket Hinge Pin	120 in
Reach @ Maximum Height	36.7 in
Turning Radius	81.5 in
Length of Track on Ground	54.3 in
Track Width	12.6 in
Track Width - Optional	15.7 in
