For Compact Tractors & Small Skid Steers 2,000-6,000 lb. Machinery
Description

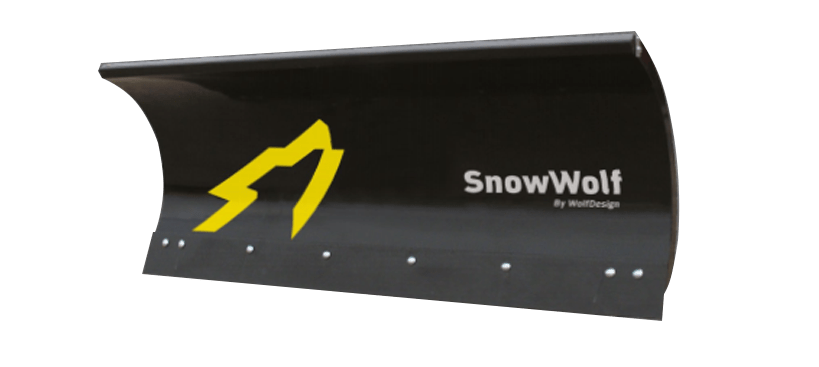

Good things sometimes come in small packages. SnowWolf’s compact FlexPlow offers key large plow features to deliver excellent performance at a very accessible price point.
Specifications
Model Number
FX-5.0
FX-6.0
FX-7.0
FX-8.0
Blade Width
5'
6'
7'
8'
Blade Width at Full Angle
49.2"
59"
68.8"
78.6"
Blade Height
30"
30"
30"
30"
Weight (lbs.) (actual-not ship weight)
479
511
543
575
Moldboard Gauge
12 Ga.
12 Ga.
12 Ga.
12 Ga.
Trip Springs
2 Extension (4 optional)
Wear Shoes
Yes
Yes
Yes
Yes
Cutting Edge
1/2" x 6"
Angle Rams
1-1/2" x 10" Chrome
Vertical Ribs
6
6
6
6
Molboard Radius
15"
15"
15"
15"
Full Down Pressure
No
No
No
No
Spring Assist Down Pressure
Yes
Yes
Yes
Yes
Universal Skid Steer Compatible
Standard
Cross Over Relief Valve
Opt.
Opt.
Opt.
Opt.
SoftTouch™ Cutting Edge
Opt.
Opt.
Opt.
Opt.
Moldboard Trip Lock-out Kit
Standard
Standard
Standard
Standard
Oscillation Lockout Kit
Opt.
Opt.
Opt.
Opt.
Manual Angle Kit
Opt.
Opt.
Opt.
Opt.
Upgrade to 4 Trip Springs
Opt.
Opt.
Opt.
Opt.
UltraMax HD Cylinder Kit
N/A
N/A
N/A
N/A
High Carbon Curb Guards
N/A
N/A
N/A
N/A
Features
Features
Benefits
Full Trip Design
This feature of the SnowWolf FlexPlow protects the machine and operator if an obstacle is struck. Coil type springs give soft trip action.
Semi-Floating Design
This innovative feature, exclusive to the SnowWolf FlexPlow, allows the operator to apply approximately 250 pounds of down pressure without lifting the front wheels of the tractor off the ground.
35 Degree Angle
A steep 35 degree angle allows the snow to roll off the blade effortlessly, while using less horsepower and traction to push more snow.
Oscillation
Oscillation allows the blade to follow the contours of the group. Optional Lockout kit avaliable for non-snow uses.
