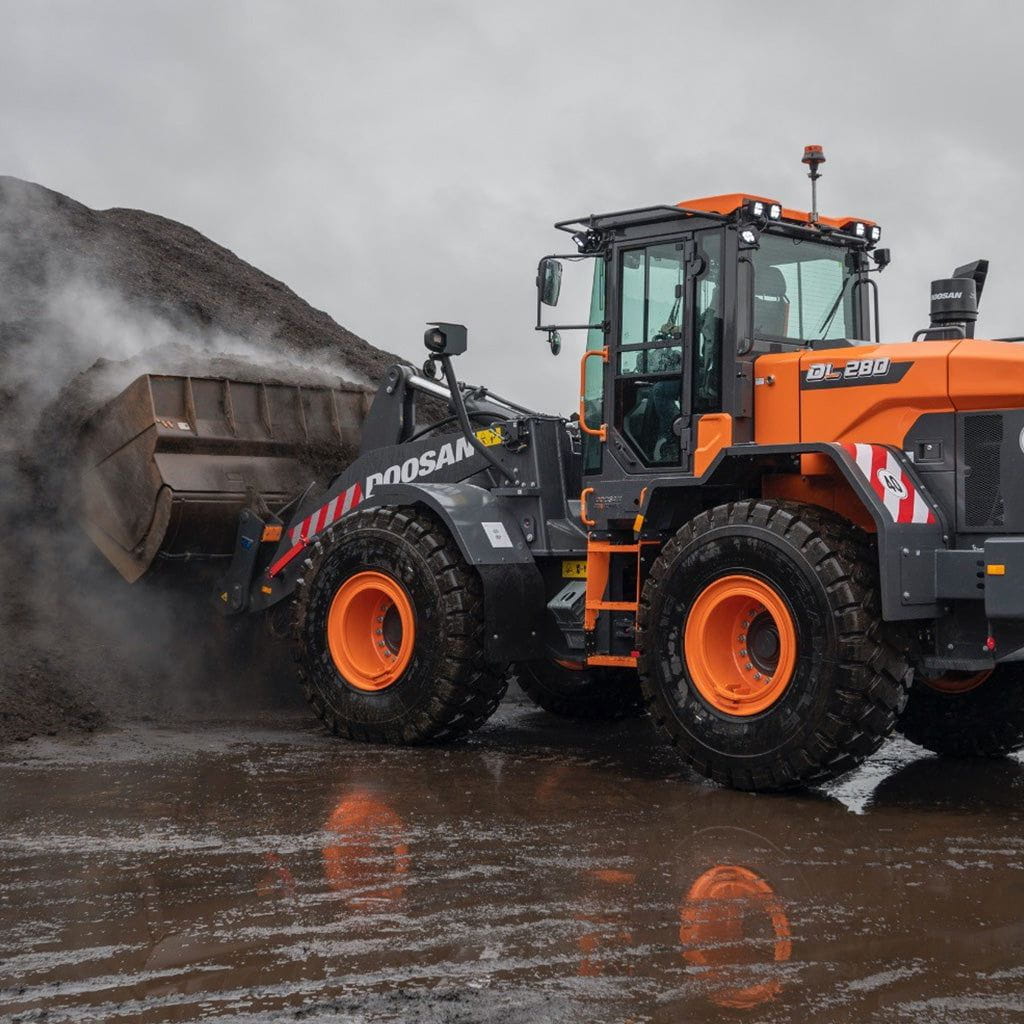

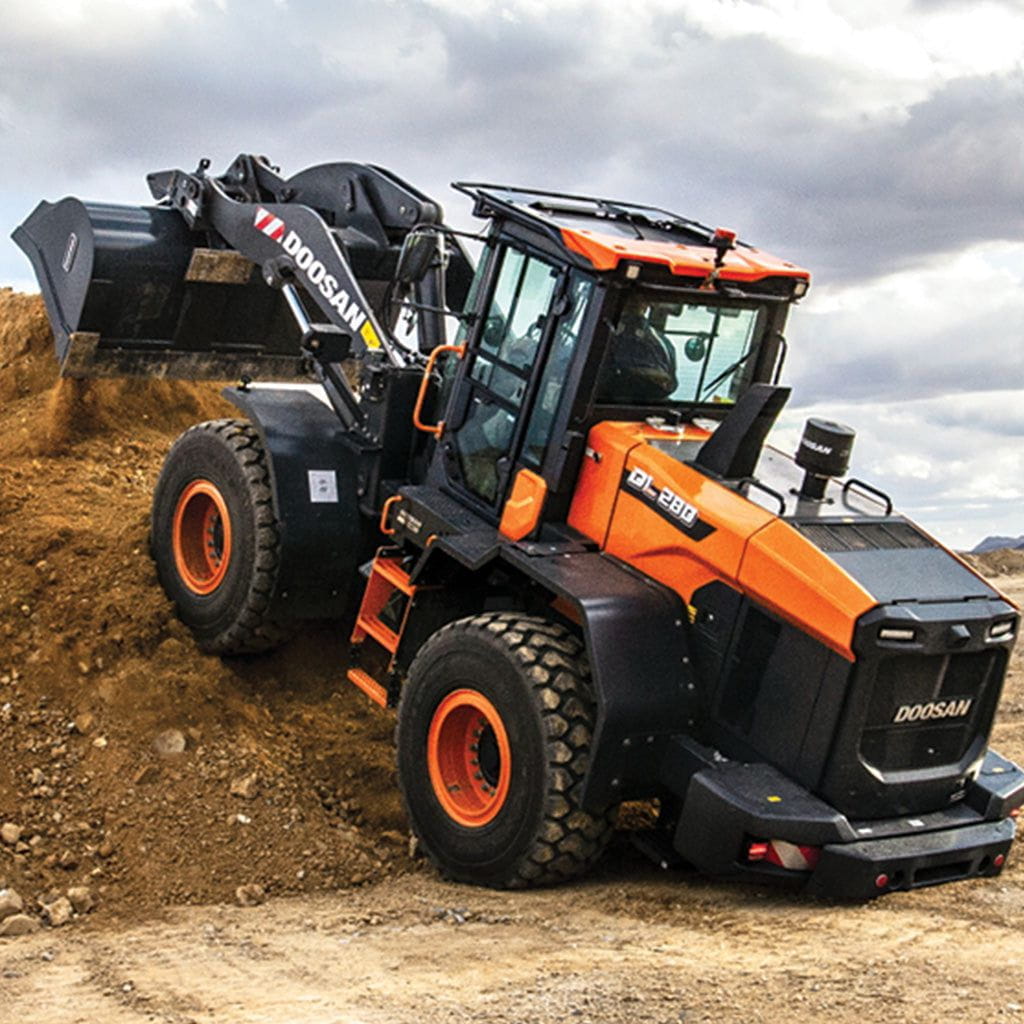

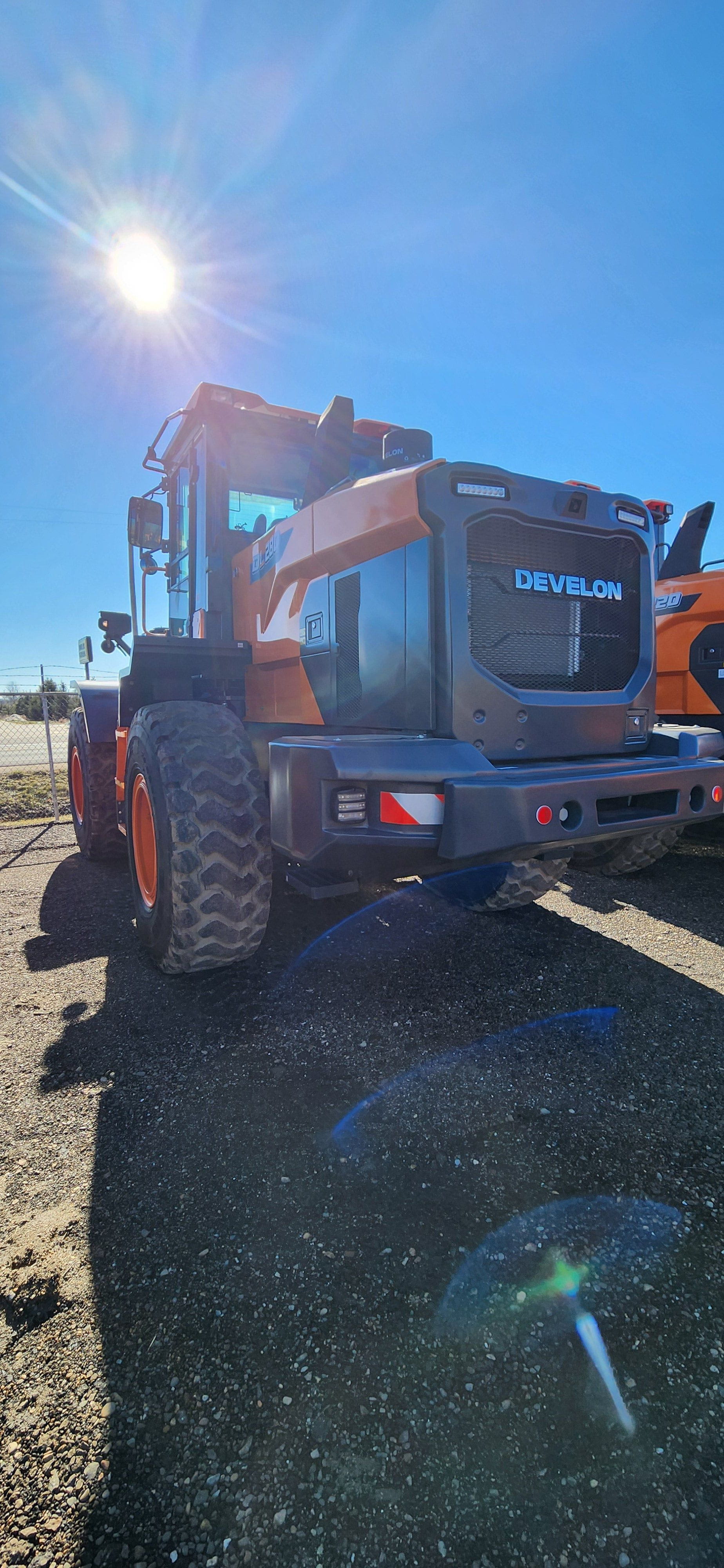

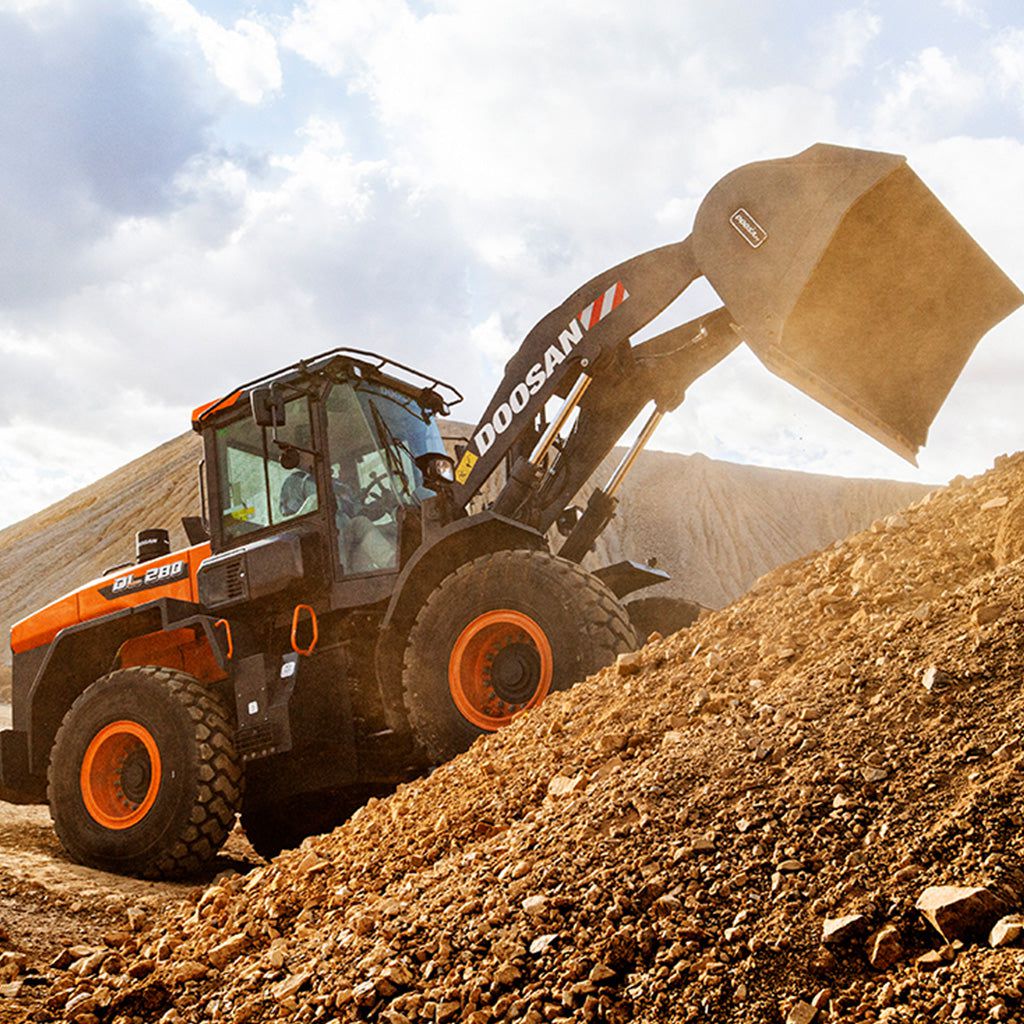

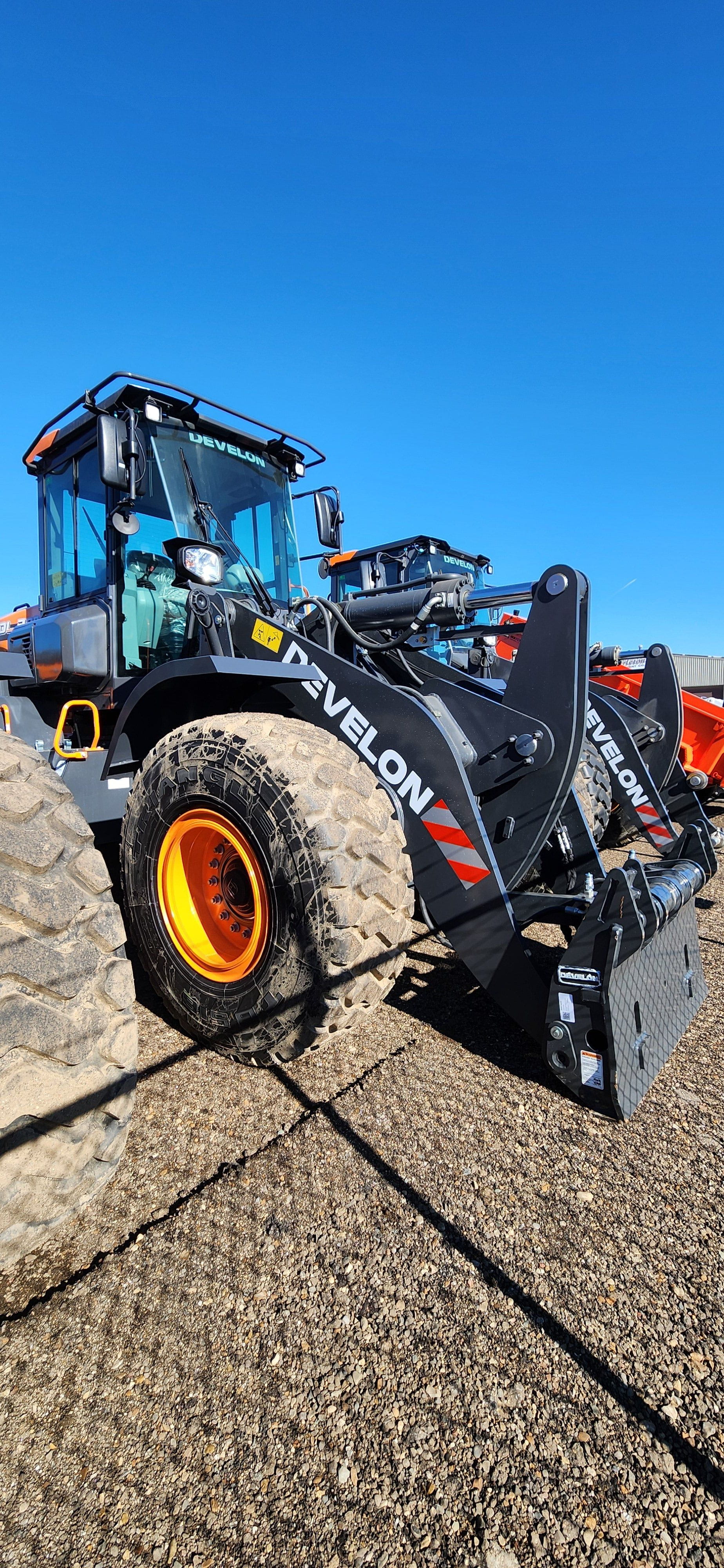

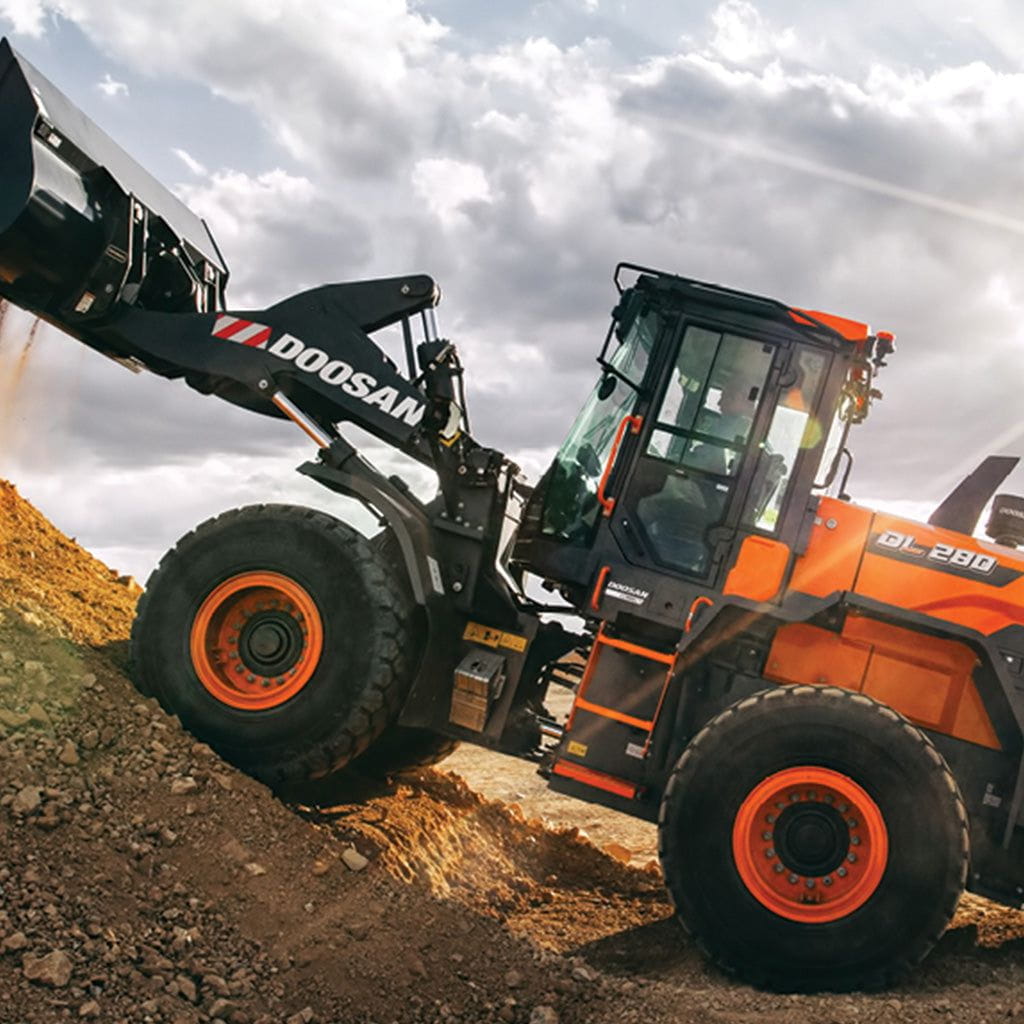

Develon DL280-7 Wheel Loader
Features:
US10: Standard Lift
.3 Ton Counterweight
Hydra Load
Description
The DEVELON DL280-7 wheel loader offers durability and maneuverability for loading and carrying construction materials or transporting scrap. New optional stronger axles increase lift capacities and an optional larger counterweight can be added. Wider radiator fin spacing and a standard reversible fan clear dirt, dust and other large debris to reduce clogging. The box frame offers added durability, and the articulating design provides excellent load distribution and rigidity for improved structural life. A deeper front fender offers additional wheel coverage for better windshield protection. A rear full fender is optional for improved machine reliability.
Full Specifications:
Engine
Configuration
US10
US11
US15
US20
US21
US30
US40
Model
DL06
Rate Flywheel Power (Gross)
189.1 hp @ 2,000 rpm
Rated Horse Power (Net)
189.1 hp @ 2,000 rpm
Max Torque (Net)
902 lbf @ 1,400 rpm
Engine Emissions Tier (EPA)
Tier 4
Engine After Treatment
DOC+SCR
Engine Make
Doosan
Number of Cylinders
6
Engine Displacement
360 in³
Hydraulic System
Configuration
US10
US11
US15
US20
US21
US30
US40
MAIN PUMP: DISPLACEMENT
7.51 in³/rev
SYSTEM PRESSURE: WORK
3843 psi
MAIN PUMP: MAX. FLOW RATE (EACH)
64.99 gal/min
MAIN PUMP: QUANTITY
1
MAIN PUMP: MAIN RELIEF PRESSURE
3843 psi
TOTAL CYCLE TIME
10.1 s (±0.4 s)
Undercarriage
Configuration
US10
US11
US15
US20
US21
US30
US40
TIRE SIZE
20.5R25, L3
TREAD WIDTH
6' 8"
Travel System/Drive Mechanism
Configuration
US10
US11
US15
US20
US21
US30
US40
TRAVEL PERFORMANCE: GRADEABILITY
58 ° @ 30 %
TRAVELING PERFORMANCE: MAX. TRACTIVE EFFORT
30,644 lb
Weights
Configuration
US10
US11
US15
US20
US21
US30
US40
OPERATING WEIGHT
34,552 lb.
34,552 lb.
34,552 lb.
34,890 lb.
34,890 lb.
35,233 lb.
36,345 lb.
Dimensions
Configuration
US10
US11
US15
US20
US21
US30
US40
BUCKET CAPACITY
3.66 yd³
BUCKET WIDTH
8' 11"
HINGE PIN HEIGHT
12' 11"
12' 11"
12' 11"
14' 5"
14' 5"
11' 11"
14' 5"
DUMP REACH AT 45° (FULLY RAISED)
3' 9"
3' 9"
3' 9"
3' 8"
3' 8"
3' 9"
3' 8"
DUMP HEIGHT AT 45° (FULLY RAISED)
9' 3"
9' 3"
9' 3"
10' 9"
10' 9"
9' 3"
10' 9"
OVERALL HEIGHT
10' 0"
OVERALL LENGTH
25' 1"
25' 1"
25' 1"
26' 5"
26' 5"
25' 1"
26' 5"
WHEEL BASE
10'
GROUND CLEARANCE
1' 3"
EXTERNAL TURNING RADIUS AT BUCKET EDGE
20' 1"
20' 1"
20' 1"
20' 8"
20' 8"
20' 1"
20' 8"
STATIC TIPPING LOAD (STRAIGHT)
27,064 lb.
27,064 lb.
27,064 lb.
22,181 lb.
22,181 lb.
27,064 lb.
22,181 lb.
STATIC TIPPING LOAD (FULL TURN)
23,856 lb.
23,856 lb.
23,856 lb.
19,553 lb.
19,553 lb.
23,856 lb.
19,553 lb.
BREAKOUT FORCE
32,822 lb.
32,822 lb.
32,822 lb.
31,024 lb.
31,024 lb.
32,822 lb.
31,024 lb.
REAR AXLE OSCILLATION
22°
DIGGING DEPTH
4.0"
4.0"
4.0"
7.0"
7.0"
4.0"
7.0"
Refill Capacities
Configuration
US10
US11
US15
US20
US21
US30
US40
FUEL TANK
62.08 gal.
COOLING SYSTEM
8.98 gal.
HYRDAULIC SYSTEM
31.7 gal.
HYDRAULIC TANK
22.45 gal.
DEF/AD BLUE TANK
7.93 gal.
