Download Spec Sheet:
General Info
|
|
---|---|
Condition: | New |
Manufacturer: | Develon |
Model: | DD100 |
Machine Type: | Dozer |
Year: | 2023 |
Hours: | 244.0 |
Stock Number: | 64126 |
Engine
|
|
---|---|
Engine: | D34 |
Engine Make: | Doosan |
Horsepower: | 122.0 |
Performance
|
|
---|---|
Operating Weight: | 22900 lb |
Travel Speed: | 0 - 5.6 mph |
Hydraulics
|
|
---|---|
Relief Pressure: | 3,626 psi |
Dimensions
|
|
---|---|
Fuel Tank: | 51.5 gal. |
Description

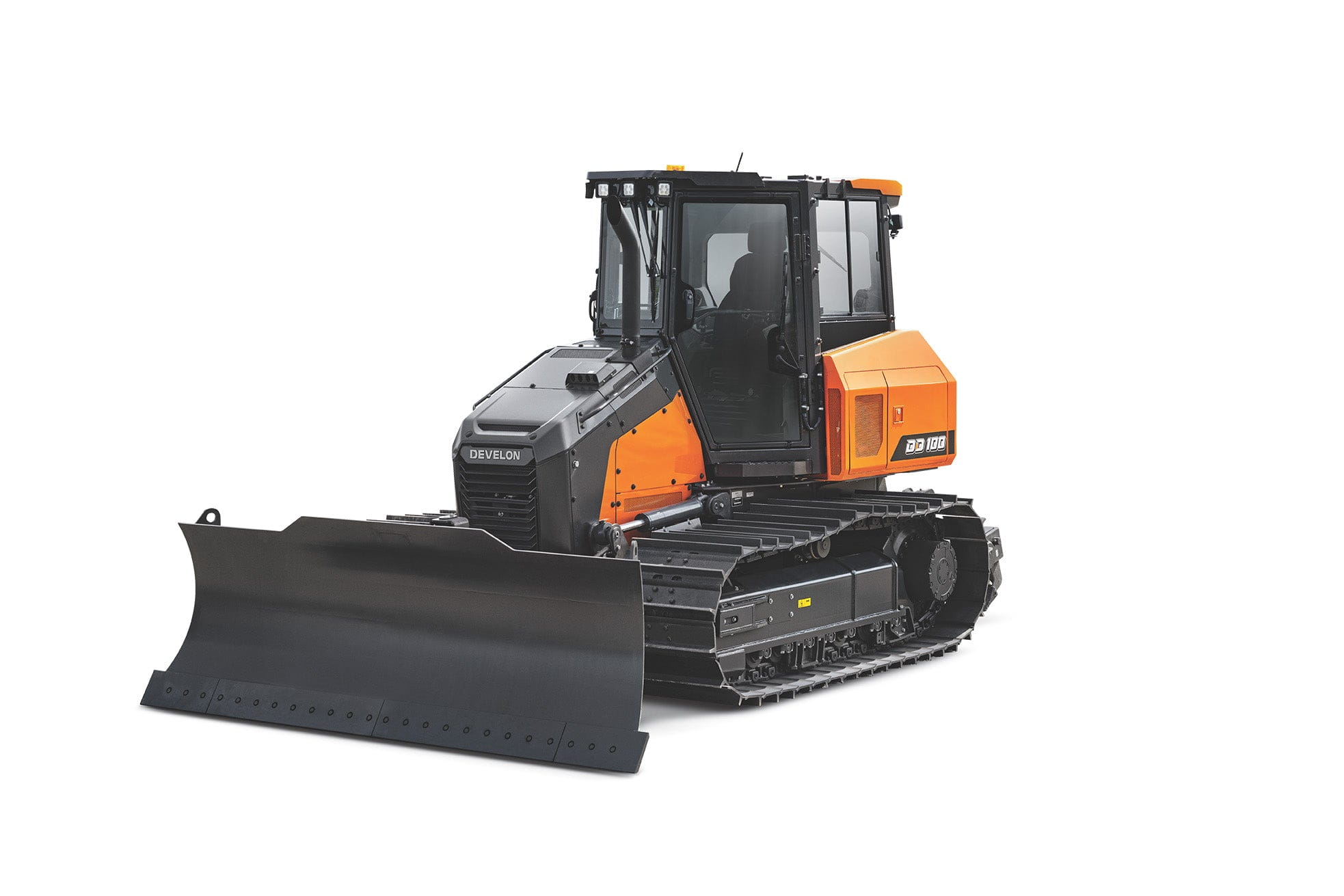

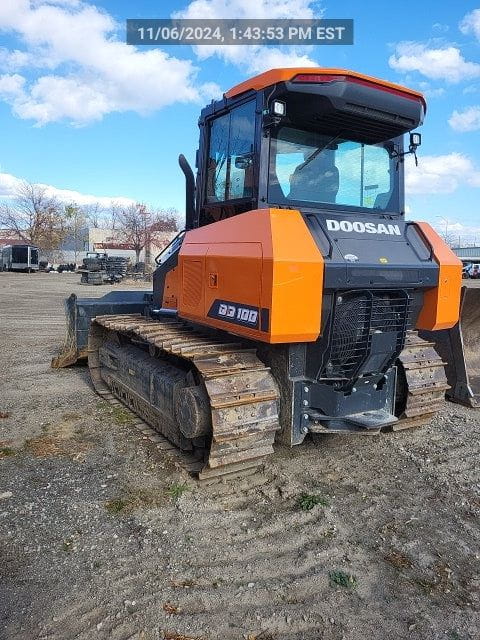

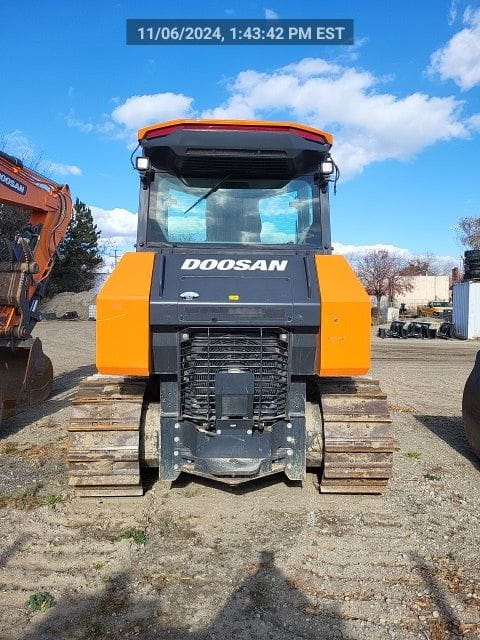

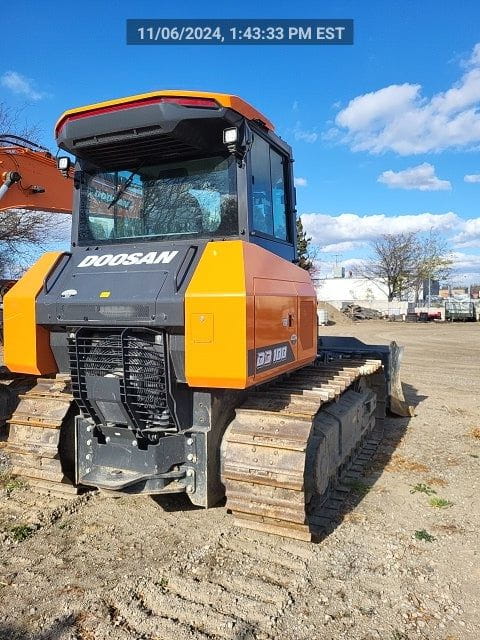

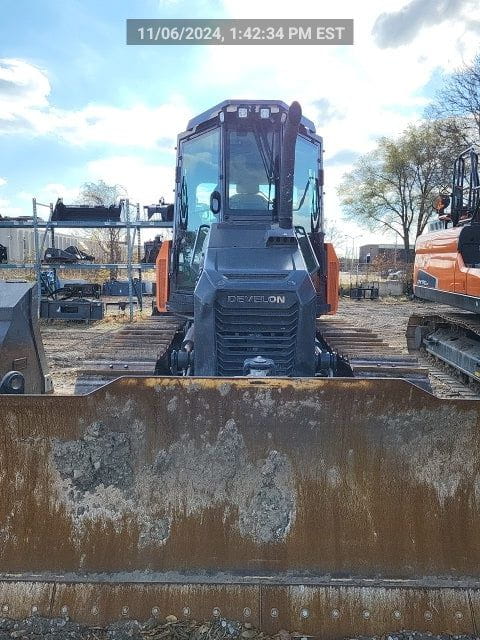

Develon DD100 Dozer
Location:
48135 Gratiot Avenue
Chesterfield, MI 48051
- 3D Trimble Ready
- 2D Control System
- Full Track Guard
DD100 | |
---|---|
Make | Develon |
Model | D34 |
Number of Cylinders | 4 |
Rated Power Gross | 122 HP |
Max Torque (Gross) | 391 lbf. ft. @ 1400 rpm |
Piston Displacement | 208 in³ |
Bore & Stroke | 3.9 in. x 4.4 in. |
Starter | 24 V, 6.7 HP |
Battery (QTY 2) | 2-12 V, 150 AH |
Alternator | 24 V, 80 amp |
Air Cleaner | Double Element |
DD100 | |
---|---|
Main Pump | 1 GPM x 26 GPM |
Relief Pressure (Normal) | 3,262 psi |
DD100 | |
---|---|
Upper Rollers (Each Track) | 1 |
Lower Rollers (Each Track) | 7 |
Number of Shoes (Links per Side) | 40 |
DD100 | |
---|---|
Travel Speed (Low-High) | 0 - 5.6 mph |
Traction Force, Max (Drawbar Pull) | 35,296 lbf. |
Maximum Grade | 70%(35°) |
DD100 | |
---|---|
Sound Level | 106 dB(A) |
Cabin Sound Level | 76 dB(A) |
DD100 | |
---|---|
Fuel Tank | 51.5 gal. |
Def Tank | 16.6 gal. |
Cooling System (Radiator Capacity) | 6.2 gal. |
Engine Oil | 11.1 gal. |
Final Drive (Each Side) | 1.8 gal. |
Hydraulic System | 21.1 gal. |
Hydraulic Tank | 0. gal. |
Blade Types:
Blade Type | XL Blade | LGP Blade |
---|---|---|
Blade Capacity | 2.8 yd³ | 3.3 yd³ |
Blade Width | 8' 11" |
10' 7" |
Blade Width (Max Angle) | 7' 11" |
9' 5" |
Blade Height | 3' 9" | |
Blade Angle (Max) | ± 27° | |
Blade Rotate (Max) | ± 8° | |
Blade Tilt (Adjustable) | 54 - 59° |
Optional Ripper:
Blade Type | XL Blade | LGP Blade |
---|---|---|
Ripper Penetration (Max) | 11.2" |
|
Ripper Beam Width |
5' 2" |
|
Ripper Cut Width | 4' 11" |
|
Ripper Shank Distance |
2' 5" |

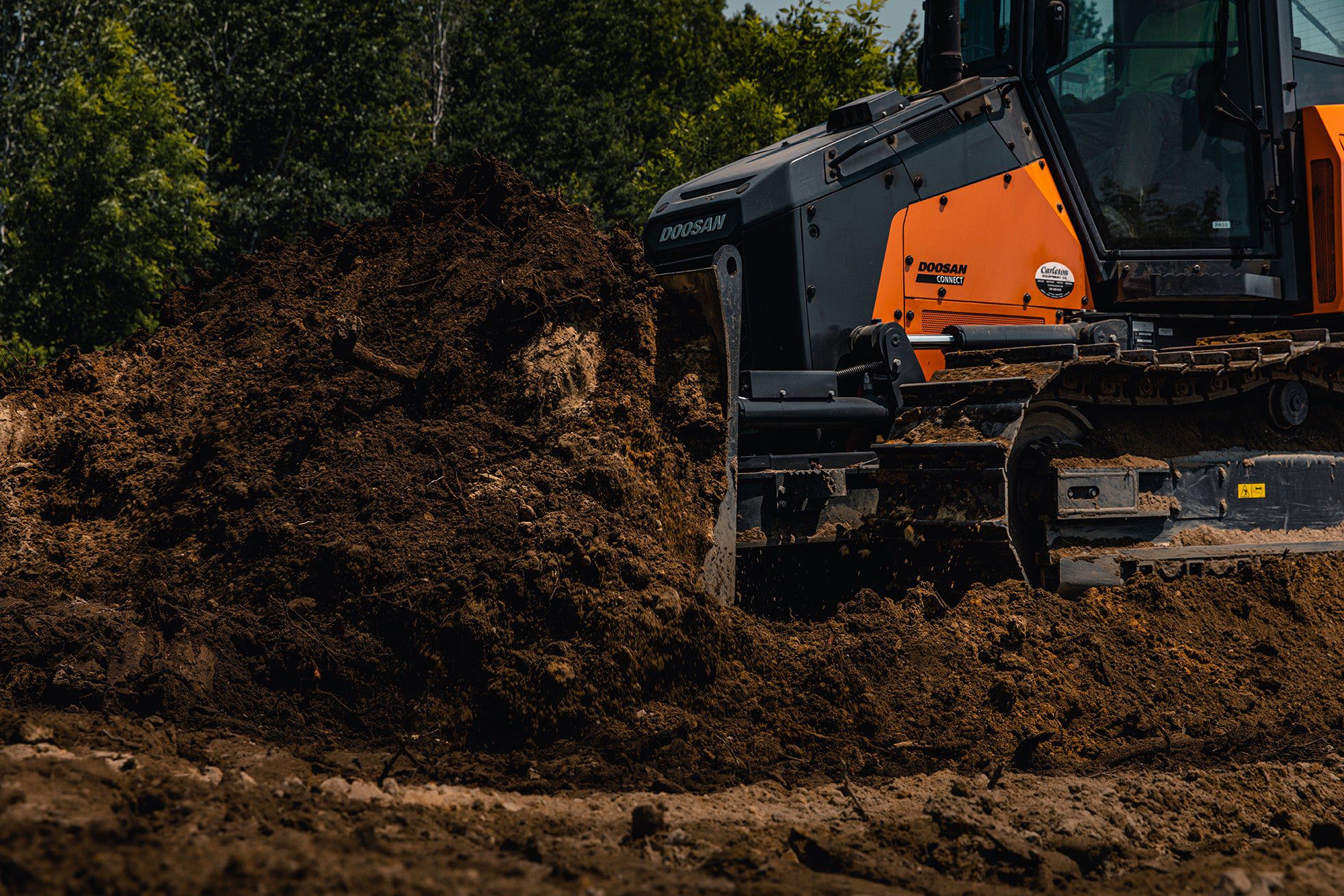

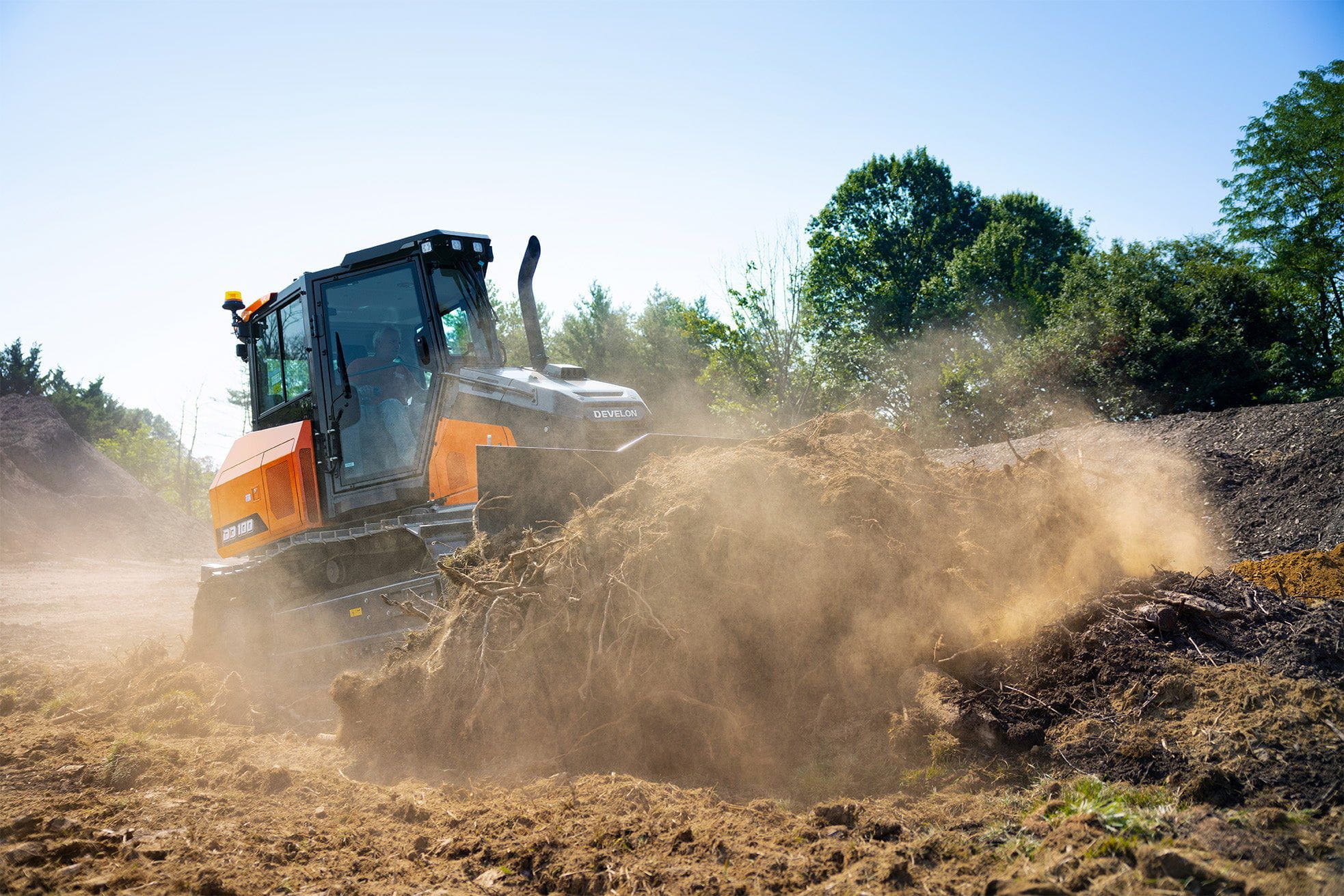

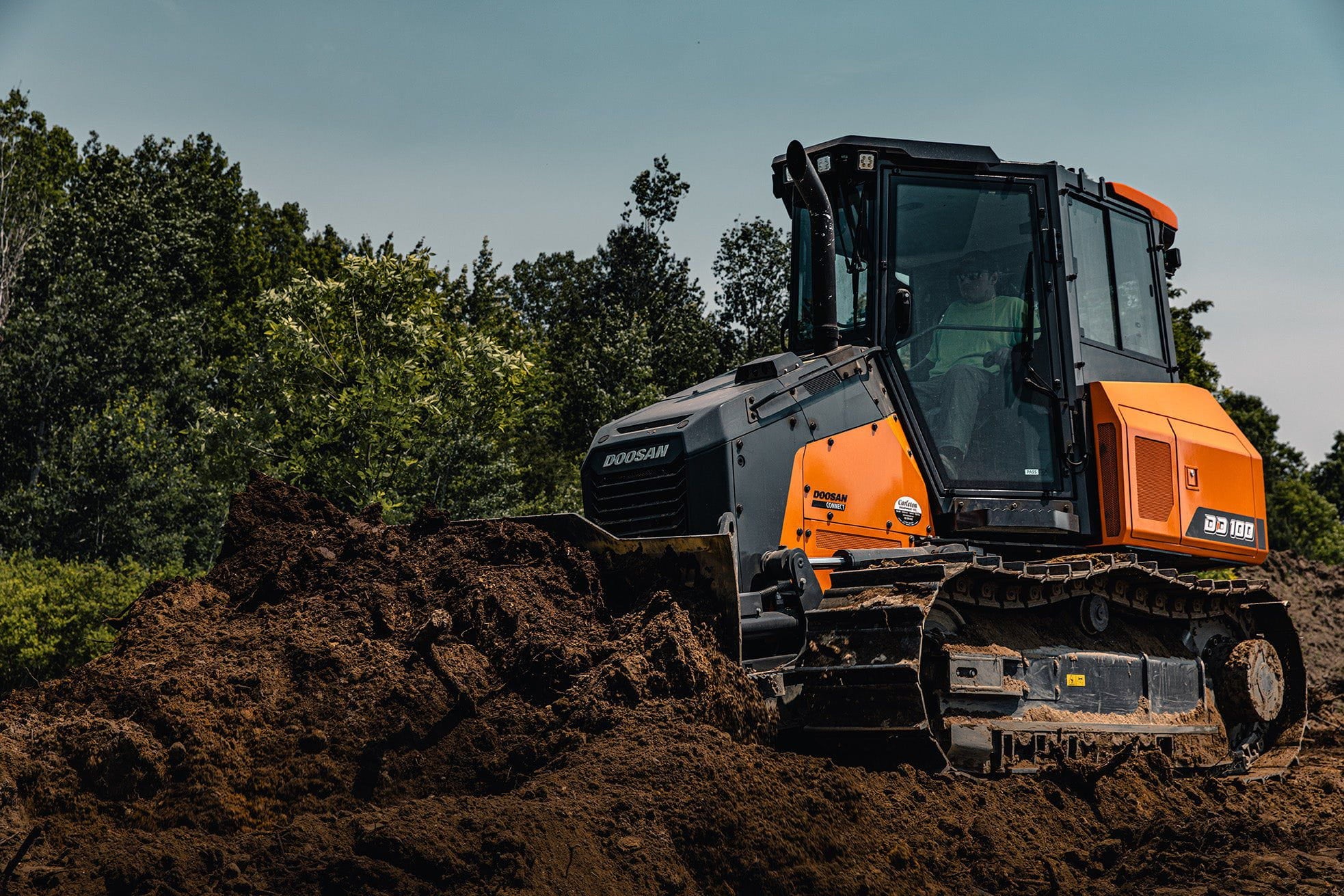

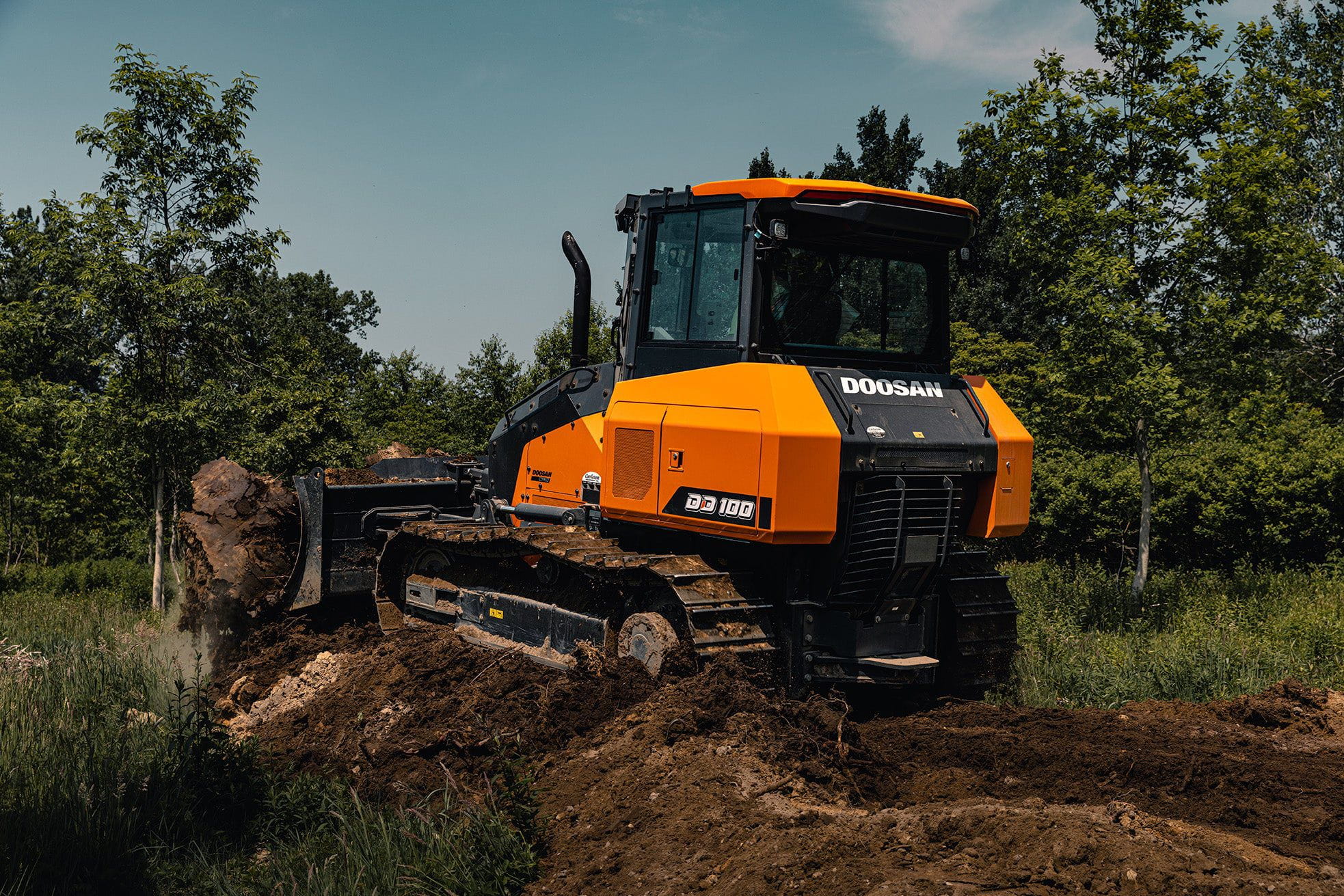

The 6-way variable-angle pitch dozer blade puts you in control for more precision when grading or moving dirt, clay and other materials.
A blade float function is ideal for fine finishing or smooth back grading.
Save time and fuel, and maximize productivity, with 2D grading technologies that help even novice operators do more, do it faster and work more precisely. The optional 2D blade assist function makes precision grading easier.
Standard, fully electronic hydraulic controls meet the needs of operators of every skill level.
No dozer offers better visibility to the 6-way angle blade. We moved the electronic cooling system to the back of the machine and there’s no precleaner to obstruct your view of the blade. The front hood of the DEVELON dozer is narrower, and the inline precleaner is hidden under the hood.
The dozer cab pillars have been minimized, allowing for maximum glass area. All-glass doors give a full view of the working environment.
A rearview camera, high-illumination LED lights and four premium wiper blades are all standard.
A standard rearview camera provides the operator with an additional view of the dozer’s surroundings, increasing confidence and productivity. Some dozer manufacturers only offer a rearview camera as an option.
Four high-illumination LED lights are standard — two in front and two in back — to enhance visibility when working in low-light conditions. Two additional LED lights are available as an option.
Operators experience a smoother ride, even when starting and stopping the dozer, for improved comfort and productivity.
For added safety, a sensor inside the bottom of the seat cushion detects when the operator stands up and automatically stops the machine. To operate the machine, the operator is required to sit down on the seat.
The standard heating and air conditioning system is designed to keep operators comfortable in every season. Operators manually control the temperature and air volume. Multiple air vents in the front, rear and floor areas are positioned to keep the cab at optimal temperatures. The front and door glass defrost vents help improve visibility. The front glass defrost meets EN474, ISO10263 Defrost standards.
